TC-XJ-LD Series Smart Sensor LED Panel Light with Radar and PIR Motion Detection •
Product Introduction

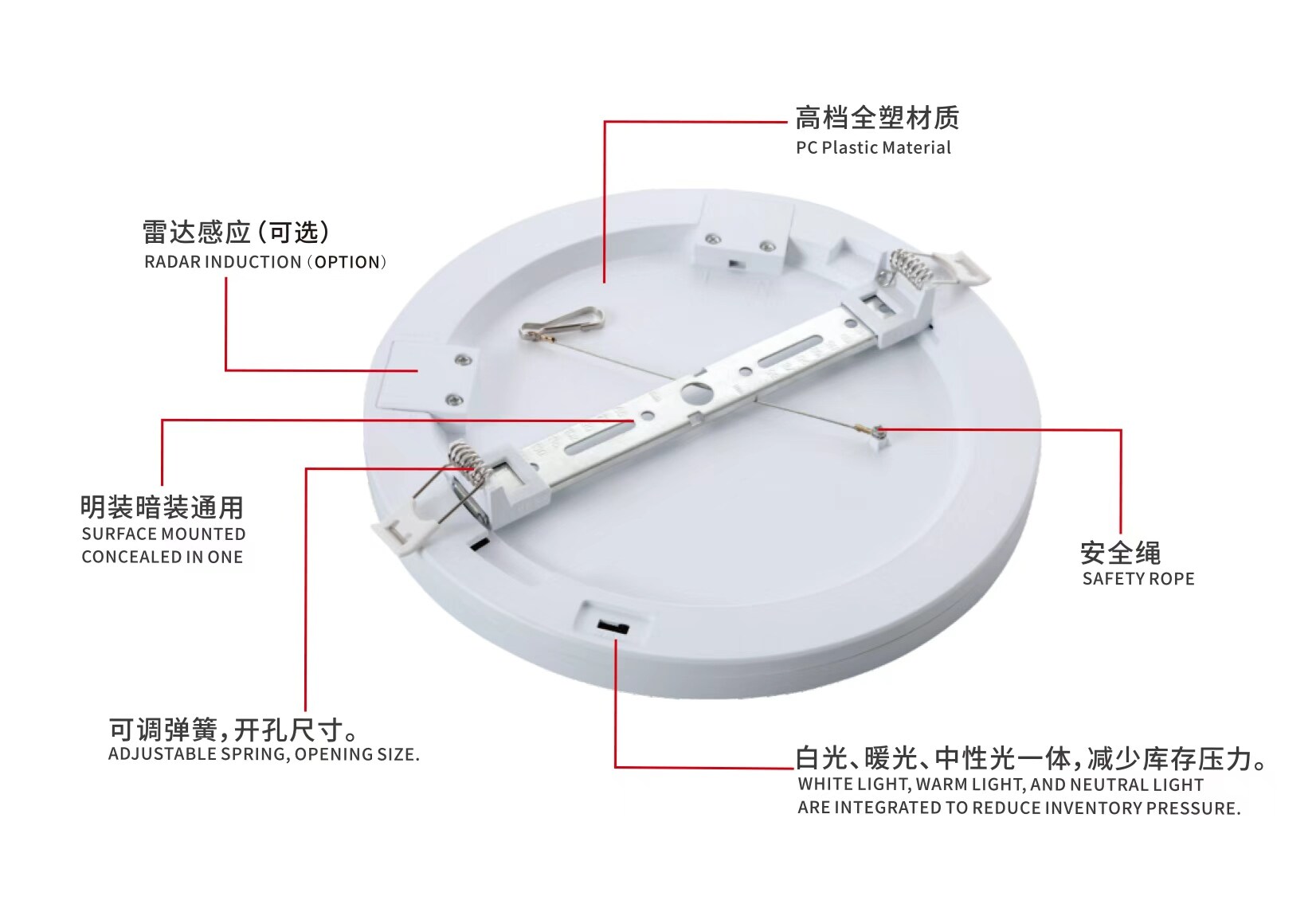

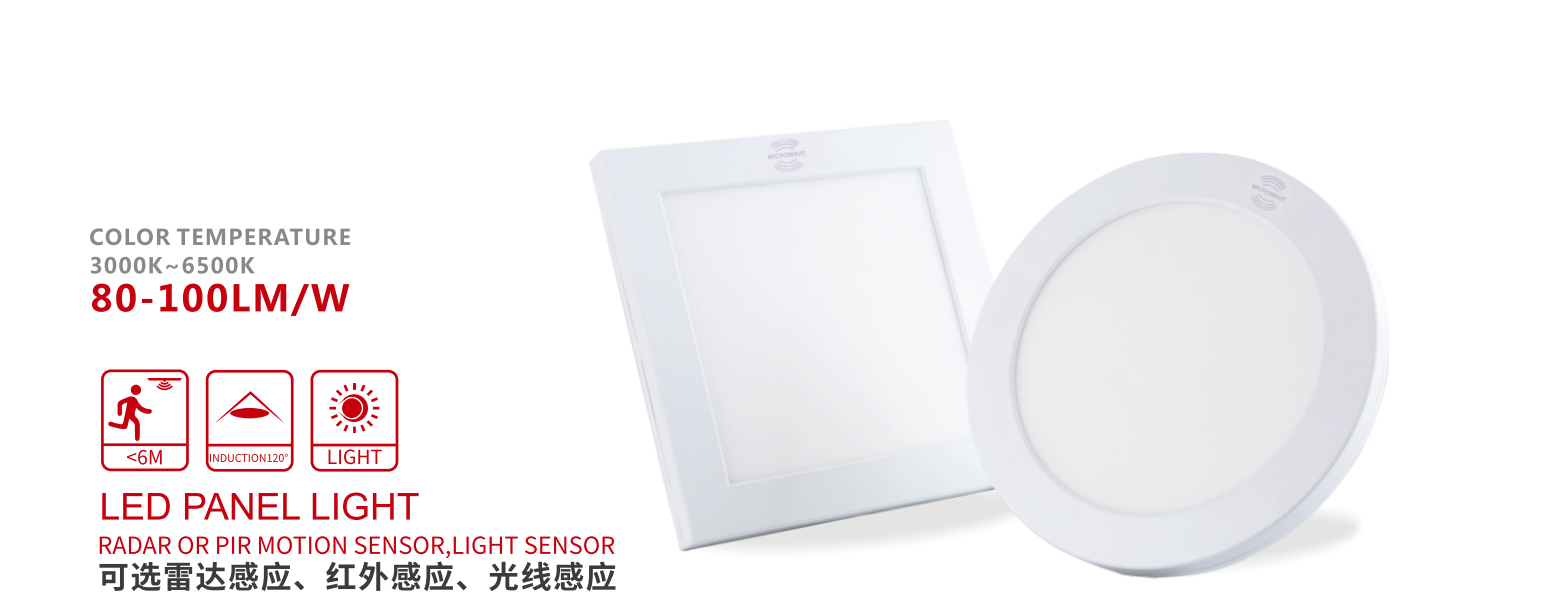

This intelligent LED panel light is available in both modern round and square profiles, offering a high luminous efficacy of 80-100LM/W. Equipped with dual smart control technologies—including optional Microwave Radar or PIR Motion Sensing (up to 6m detection range, 120° induction angle) combined with a built-in Photocell Light Sensor—it provides fully automated, energy-saving hands-free illumination. Featuring a tunable color temperature ranging from 3000K to 6500K, this ultra-slim fixture is p
Product Downloads
Overview
ITEM NO. | POWER | LAMPSIZE{mm) | Hole Size | CM | PCS | 20GP | 40HO |
TC-XJ-LD-RD-9W | 9W | φ155mm | 55-130mm | 54*33*38.5 | 60 | 23612 | 57720 |
TC-XJ-LD-RD-12W | 12W | 中175mm | 55-150mm | 40.5*33*42.5 | 40 | 19013 | 46477 |
TC-XJ-LD-RD-18W | 18W | φ225mm | 55-200mm | 50.5*33*27 | 20 | 12000 | 29336 |
TC-XJ-LD-RD-24W | 24W | 中300mm | 55-280mm | 66.5*33*35 | 20 | 7030 | 17185 |
TC-XJ-LD-SQ-9W | 9W | 155x155mm | 55-130mm | 54*33*38.5 | 60 | 23612 | 57720 |
TC-XJ-LD-SQ-12W | 12W | 175×175mm | 55-150mm | 40.5*33*42.5 | 40 | 19013 | 46477 |
TC-XJ-LD-5Q-18W | 18W | 225×225mm | 55-200mm | 50.5*33*27 | 20 | 12000 | 29336 |
TC-XJ-LD-SQ-24W | 24W | 300×300mm | 55-280mm | 66.5*33*35 | 20 | 7030 | 17185 |
