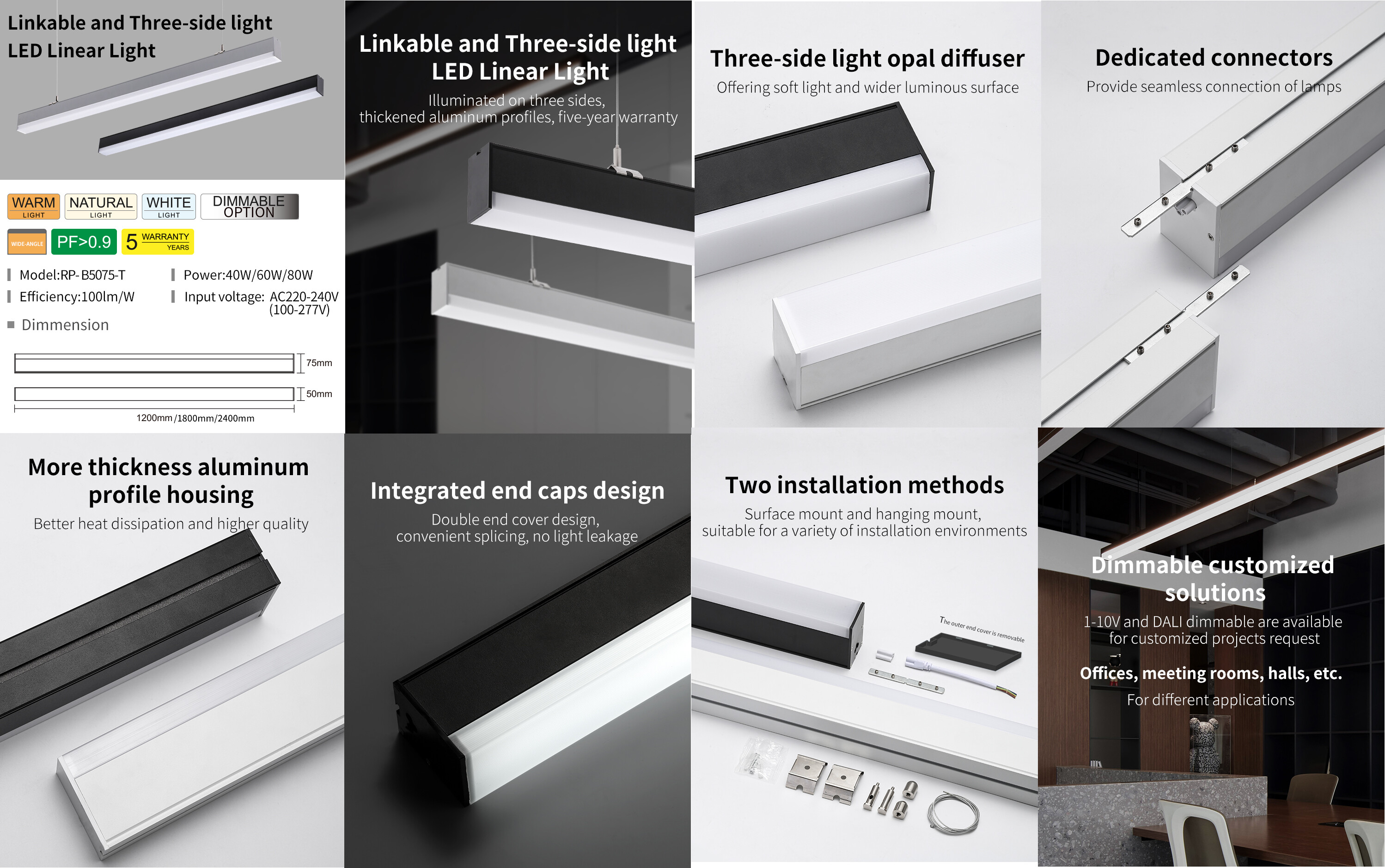

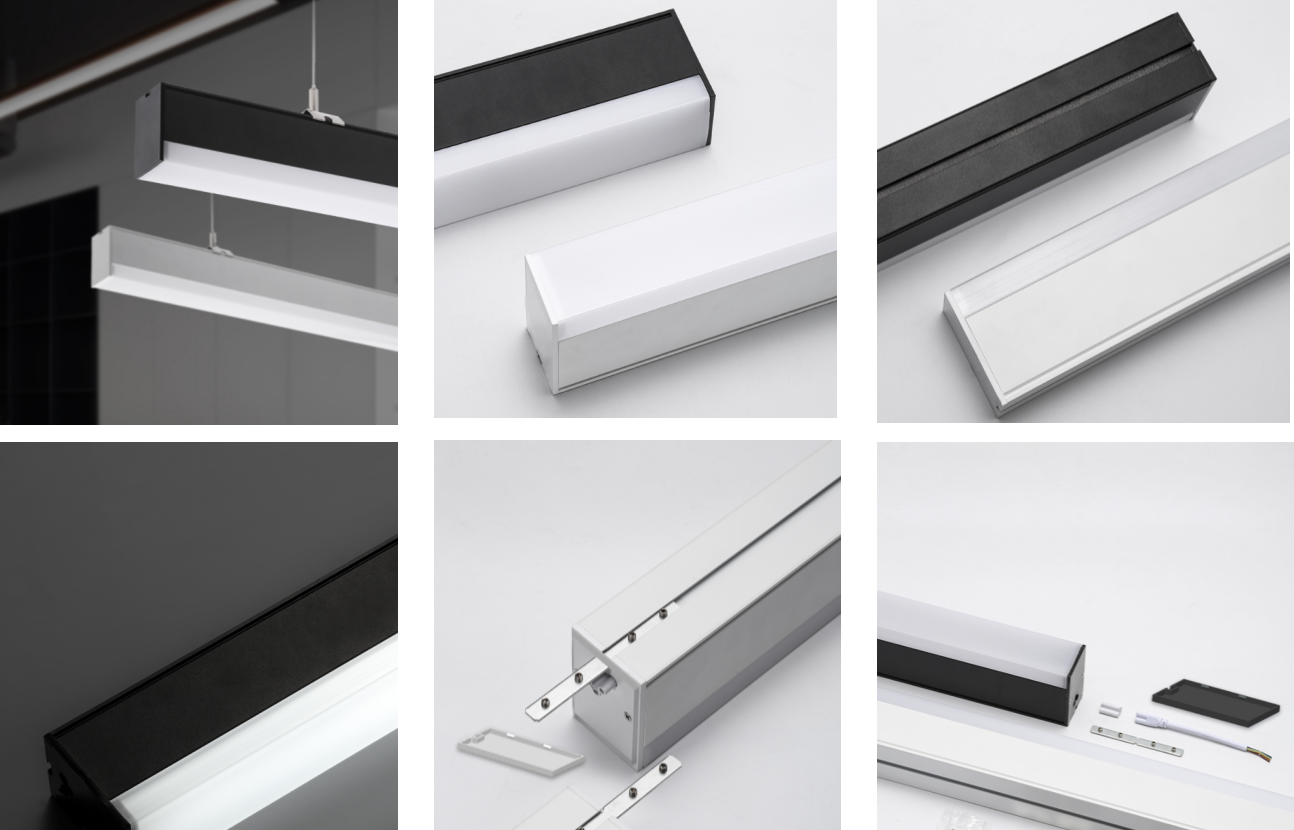

LED Linear light B series in Silver and Black
Product Introduction
Product Downloads
Overview
MODEL | TC-RP-B5075-T12 | TC-RP-B5075-T18 | TC-RP-B5075-T24 |
Size(mm) | L1210*W50*H75 | L1810*W50*H75 | L2410*W50"H75 |
Input(V) | AC200～240V(Option AC100-277V) | ||
Frequency domain | 50/60 Hz | ||
Input current | Max0.25A | Max0.38A | Max0.5A |
Rated power(W) | 40W | 60W | 80W |
Power Factor (PF) | >0.9 | ||
Dimmable | Option :Dali/0-10V | ||
THD | <15% | ||
Lumens (lm) | 3800I m | 5700I m | 7600lm |
CCT(K) | 3000-6500K | ||
CRI | Ra≥ 80 | ||
SDCM | <6 | ||
Beam Angle | 120° | ||
UGR | UGR<22 | ||
LEDs | SMD2835 | ||
Life Span(Hrs) | ≥35000H | ||
Material | AL+PC | ||
Body color | White,Silver,Black | ||
Protection class(IP) | IP20(i ndoor) | ||
Operating temperature | -20℃~45℃ | ||
Operating humidity | 10%～90%R.H. | ||
Stocking temperature | -40℃~ 80℃、5%～ 95%R.H. | ||
Product certification | CE | ||
Environmental directive | ROHS | ||
