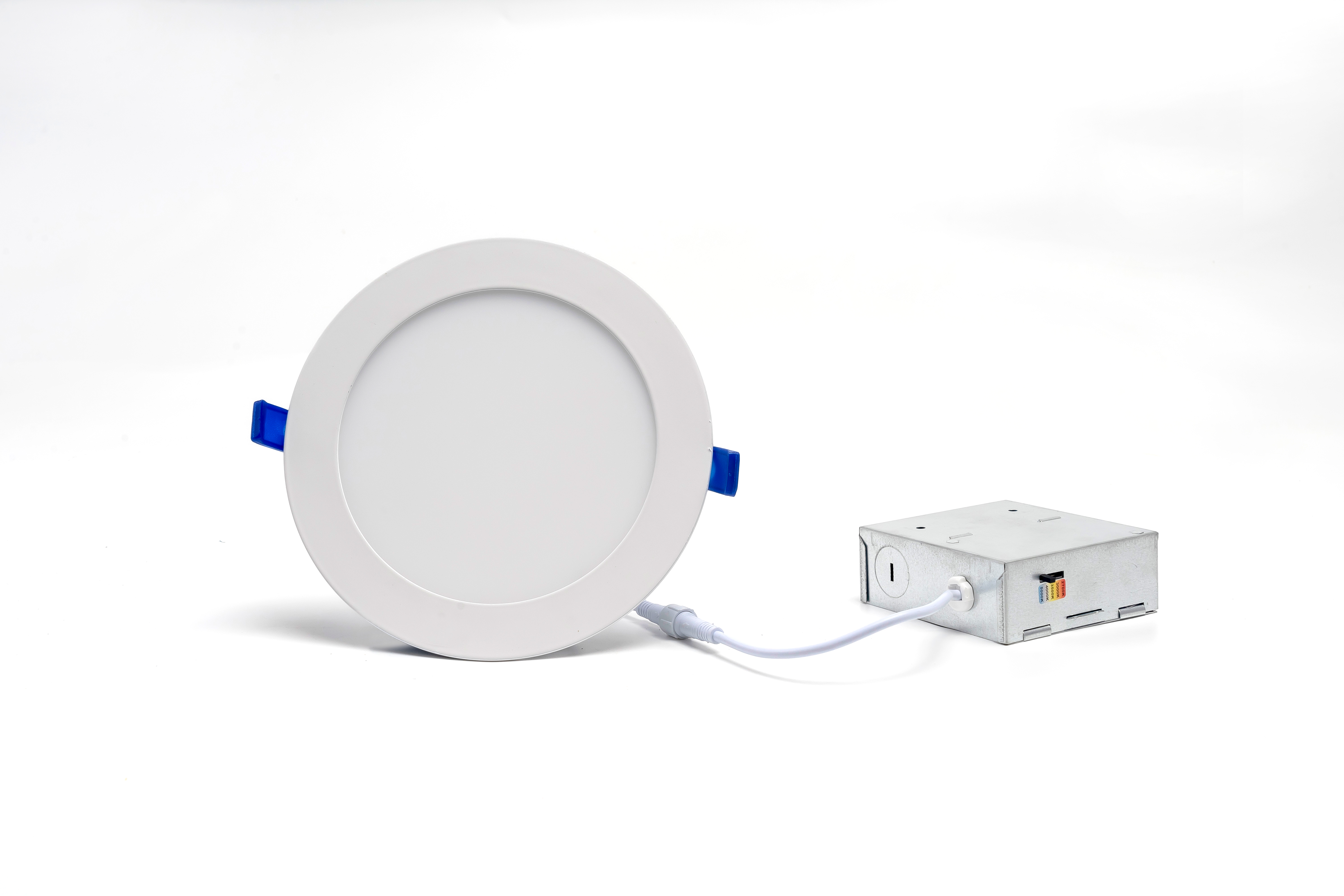

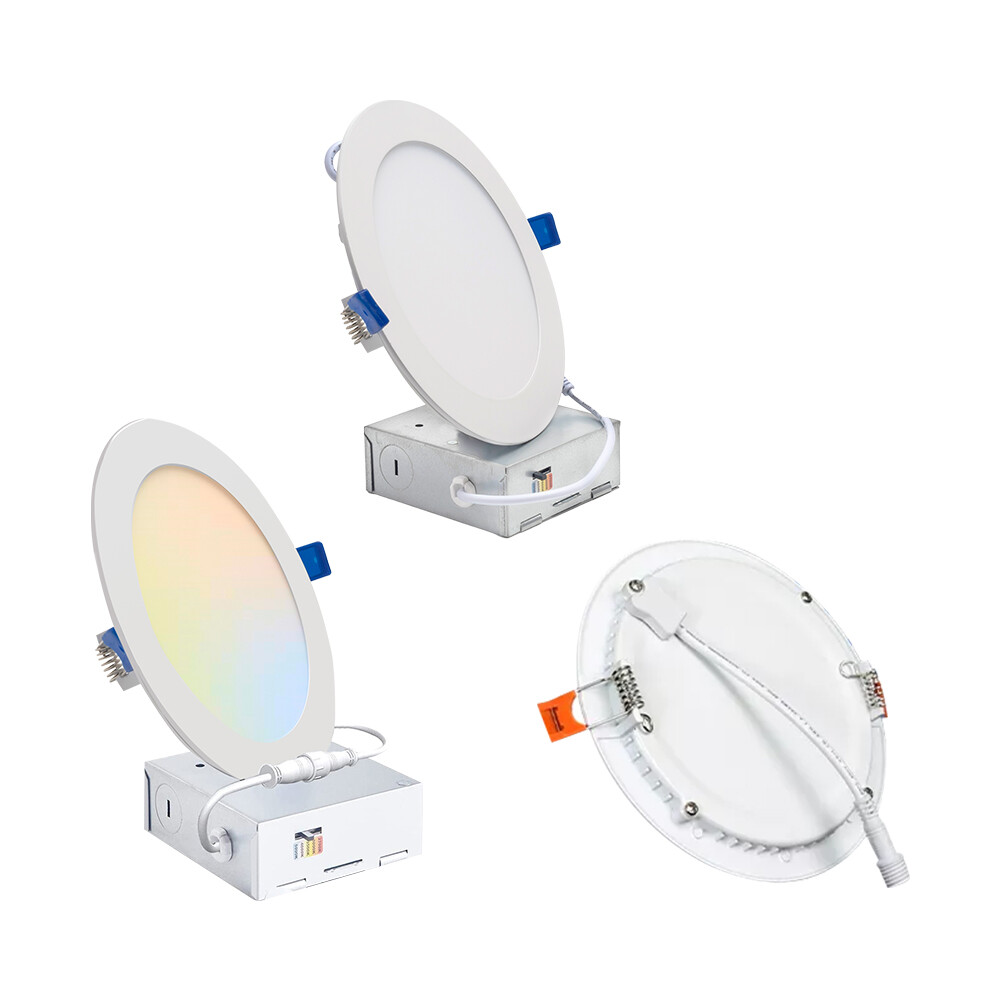

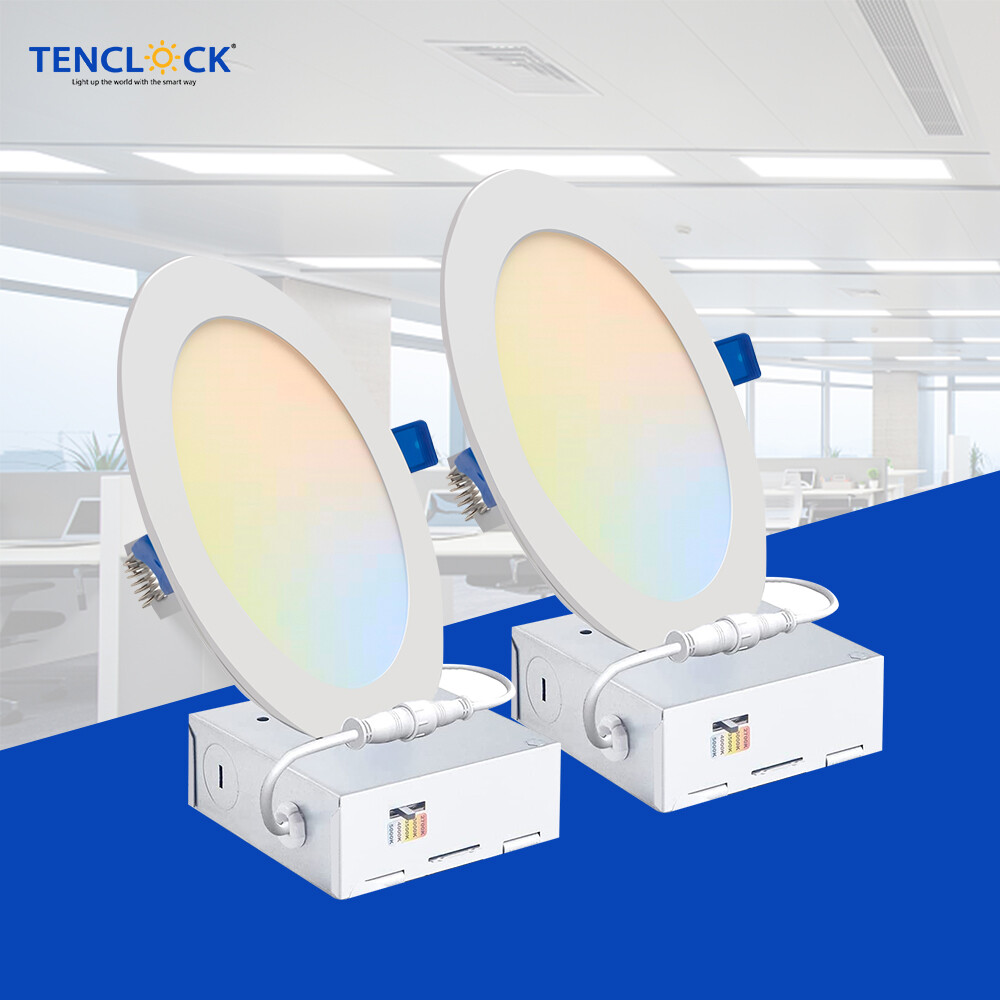

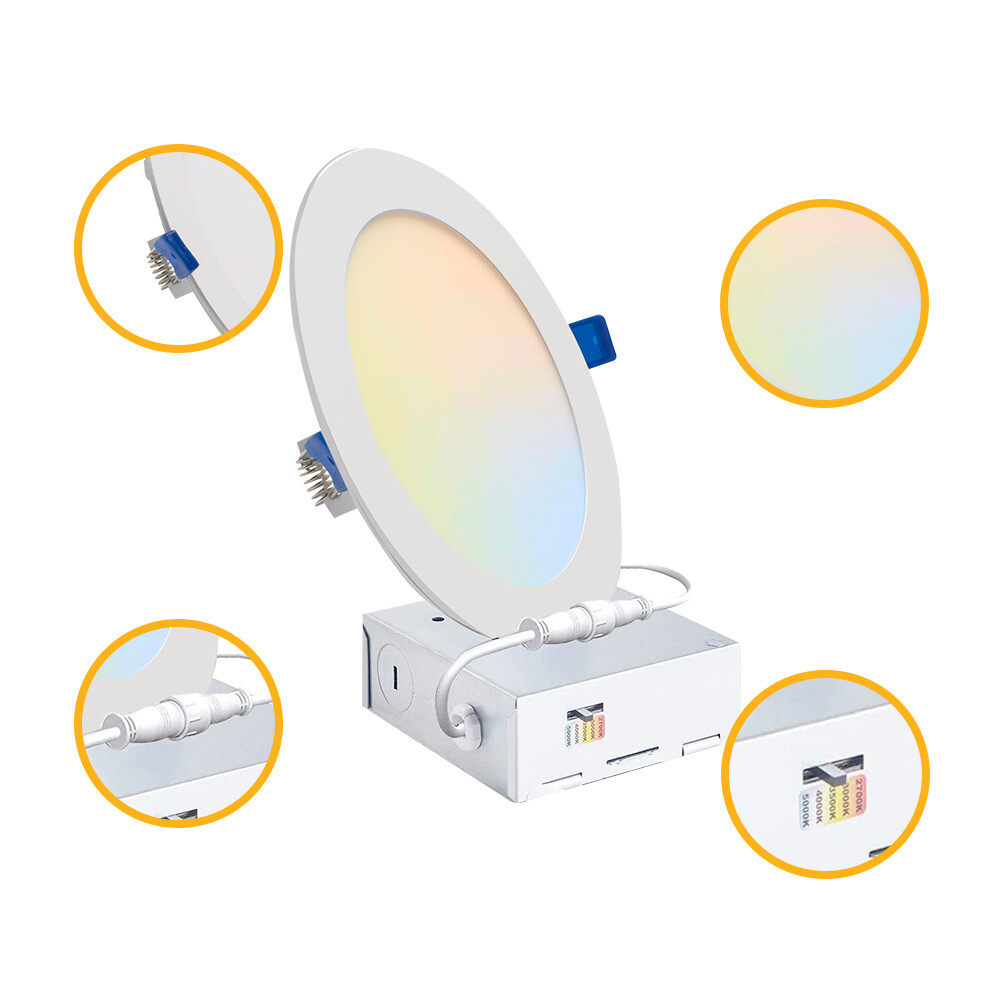

Recessed super slim 5CCT LED panel Light Downlight

Product Introduction

The 5CCT super slim recessed LED downlight provides excellent solution for commercial and industrial applications by offering even edge-to-edge lighting. Color temperature can be switch to 3000K warm white, 4000K natural white and 6000K cool white. With the ultra thin design they are perfect for applications with any ceilings. The5CCT Down lights are EMC LVD and ROHS certified. They are popular in office, warehouse, public area and other commercial area.

Product Downloads

Overview

Technical Details
Certification:	ETL/ES/FCC
WARRANTY:	5 YEARS
Dimmable:	YES
Electrical Parameters
Power consumption	10/12w
Driver Input Voltage:	120v 50-60Hz
Output Voltage:	DC24-42V
Angle of radiation	120 degree
Colour rendering	80
Power Supply Efficiency	>88%
Power Factor:	0.9
Protection Class:	Class II

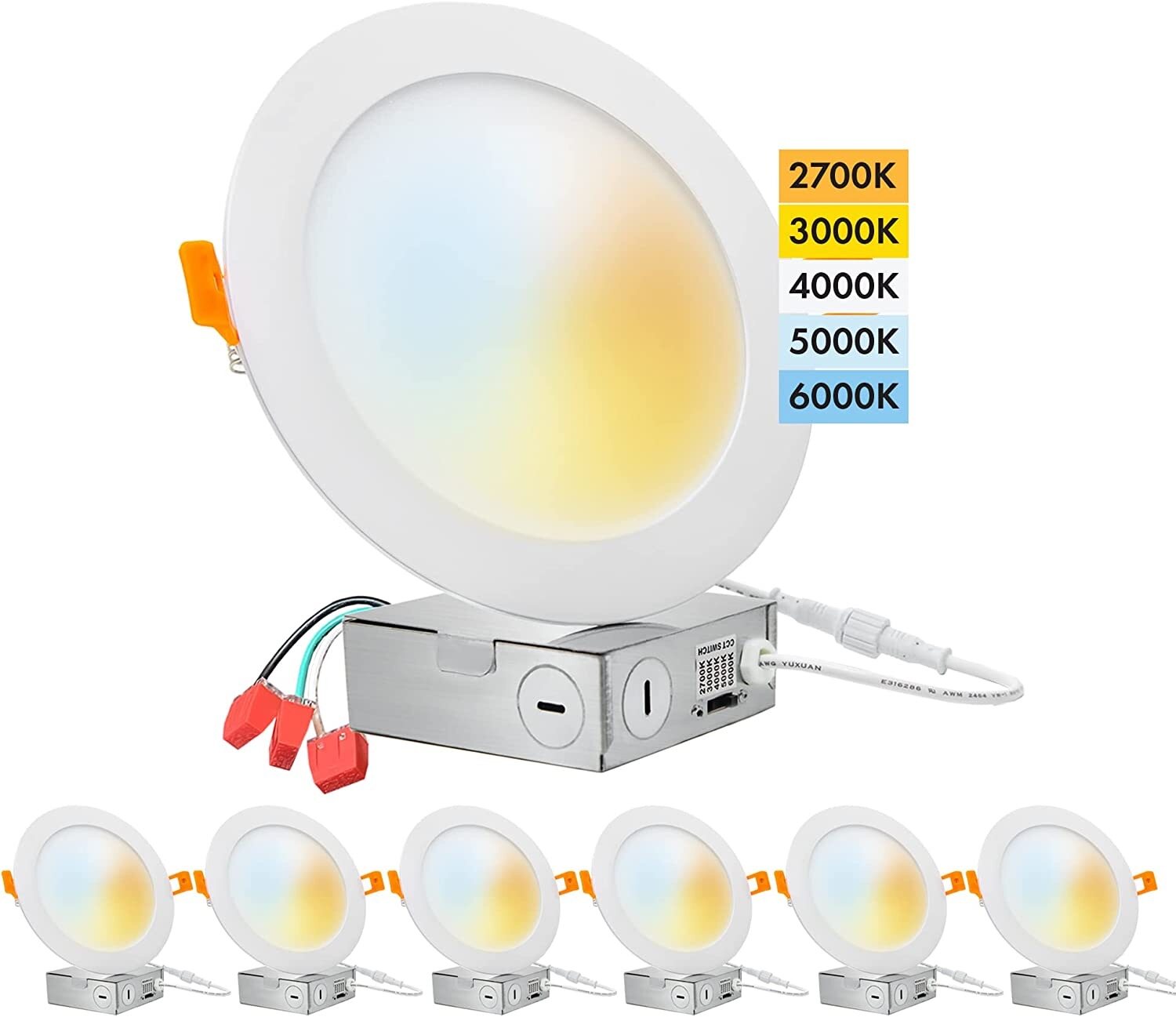

Colour temperature	2.7K/3K/3.5K/4K/5K
Photometric Parameters
Type	Super slim down light
Assembly	Round/Square
Housing:	Aluminum frame white coated
Heatsink:	PCB Board and Aluminum frame
Model	panel light
Working Temperature:	25-50 Degree
Storing Temperature:	40-60
Working Humidity:	15%-90%RH
IP rateing:	IP20 LED Panel and Power supply
IK rateing:	IK08
LED light source:	SMD2835
Installation:	Recessed suspension avaliable
LED Lifespan	>30000Hrs

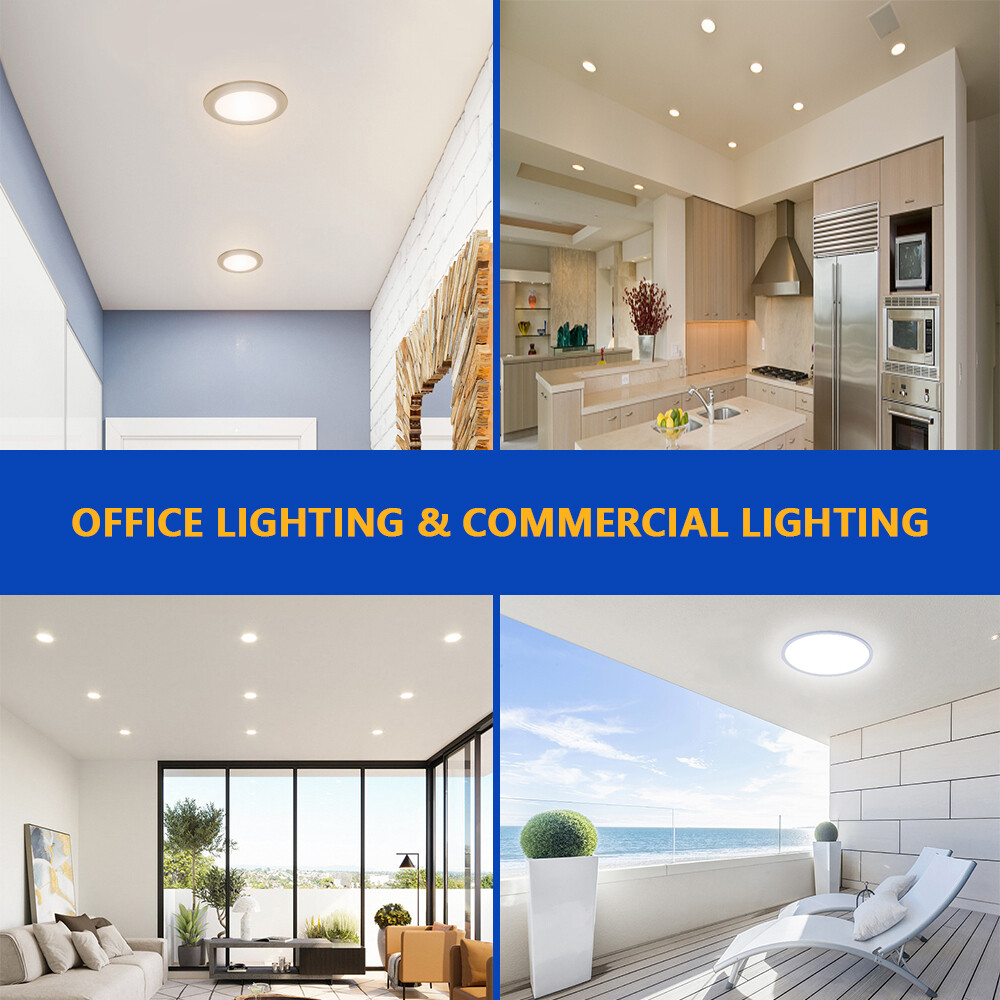

Fields of application:
Interior applications
wall and ceiling mounting
