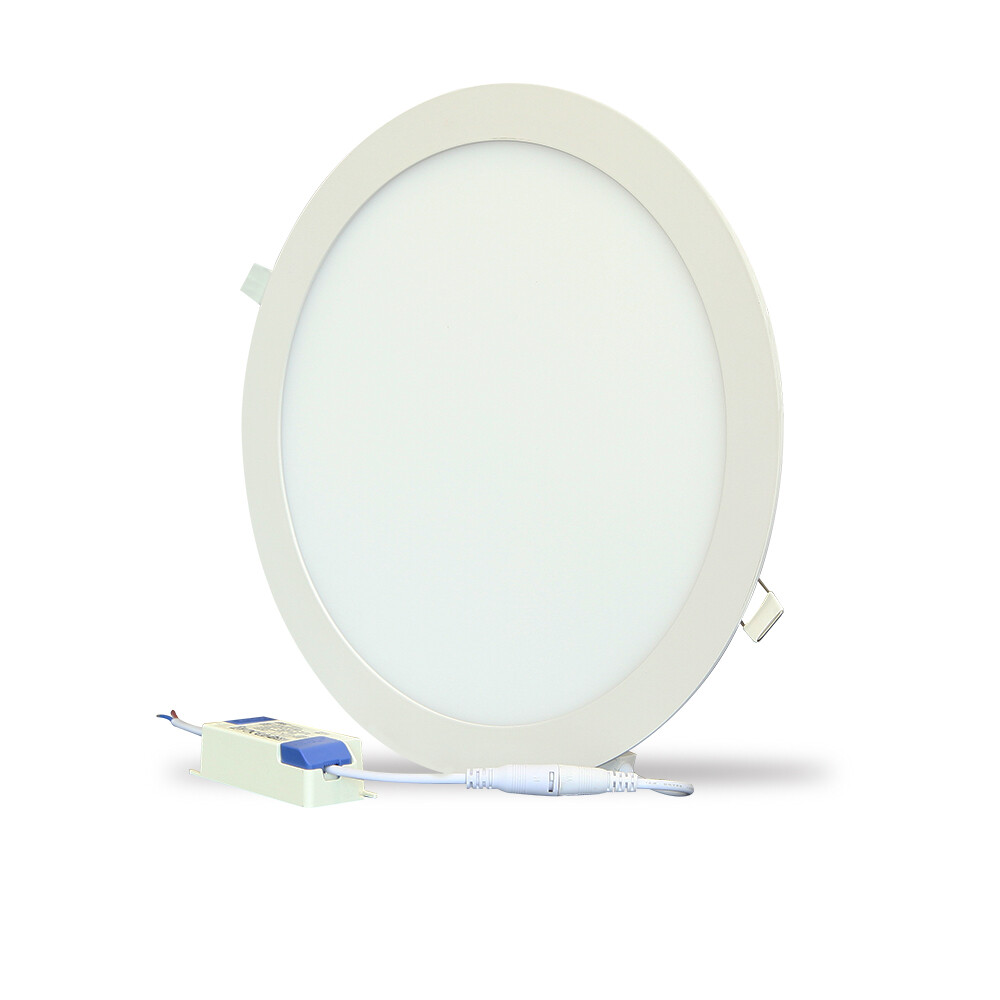

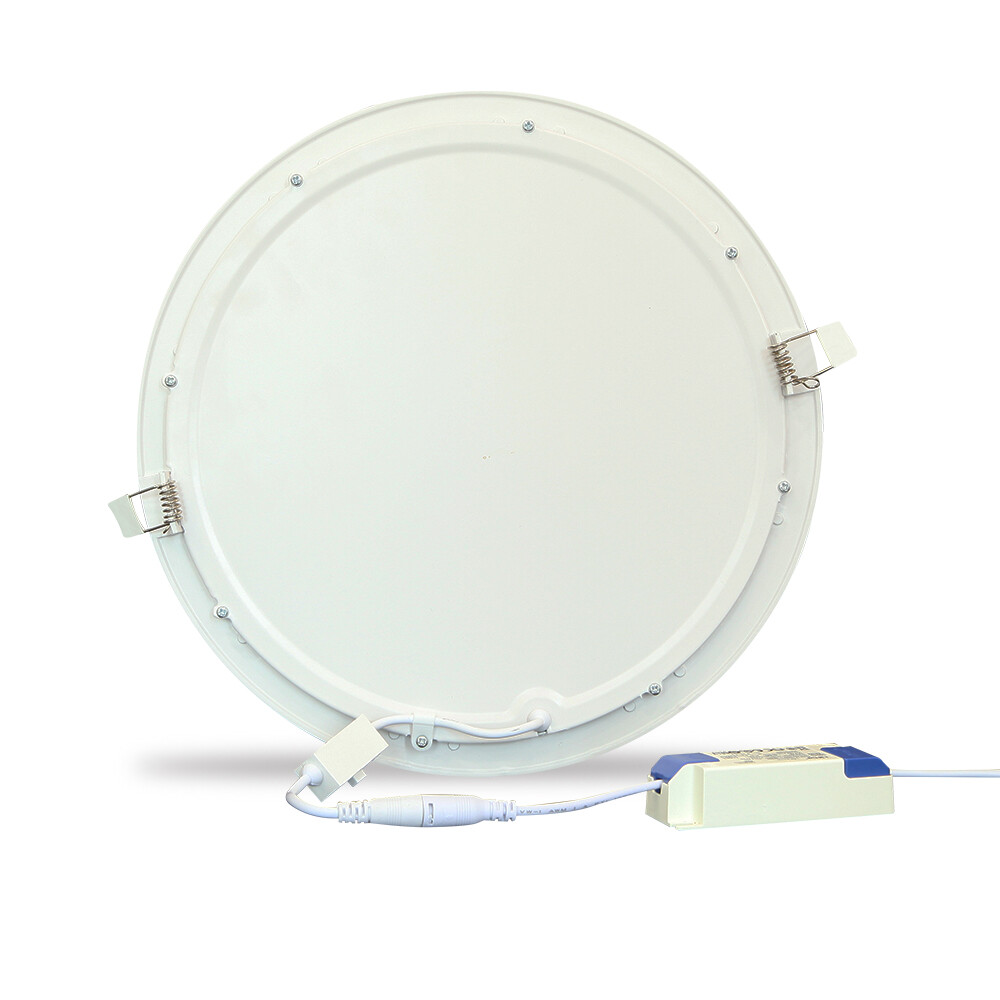

Ultra Slim Design small Round Panel Light downlight LED

Products Parameters

Out Size±0.1

Rated Power

Out Size±1

Cut Size±2

output Voltage

Oouput

Current(mA)

PF

lm/W
±10%

Round

2.5inch

3W

Φ85

Ø68

5-12V

300mA

0.5

55

3.5 inch

6W

Ø120

Ø105

27-40V

150mA

0.5

60

4inch

9W

Ø148

Ø128

30-40V

250mA

0.5

65

5inch

12W

Ø170

Ø150

30-40V

300mA

0.5

70

6inch

15W

Ø190

Ø170

30-40V

350mA

0.5

75

8inch

18W

Ø220

Ø200

30-42V

450mA

0.5

80

7.2inch

20W

Ø240

Ø220

30-42V

500mA

0.5

80

9inch

24W

Ø300

Ø280

27-39V

600mA

0.5

80

9inch

30W

Ø300

Ø280

24-42v

750mA

0.9

80

Square

2.5inch

3W

88*88

68*68

5-12V

300mA

0.5

55

3.5 inch

6W

120*120

105*105

27-40V

150mA

0.5

60

4inch

9W

148*148

128*128

30-40V

250mA

0.5

65

5inch

12W

170*170

150*150

30-40V

300mA

0.5

70

6inch

15W

190*190

170*170

30-40V

350mA

0.5

75

8inch

18W

220*220

200*200

30-42V

450mA

0.5

80

7.2inch

20W

300*300

280*280

30-42V

500mA

0.5

80

9inch

24W

300*300

280*280

27-39V

600mA

0.5

80

9inch

30W

300*300

280*280

24-42v

750mA

0.9

80

Gerneral

CCT

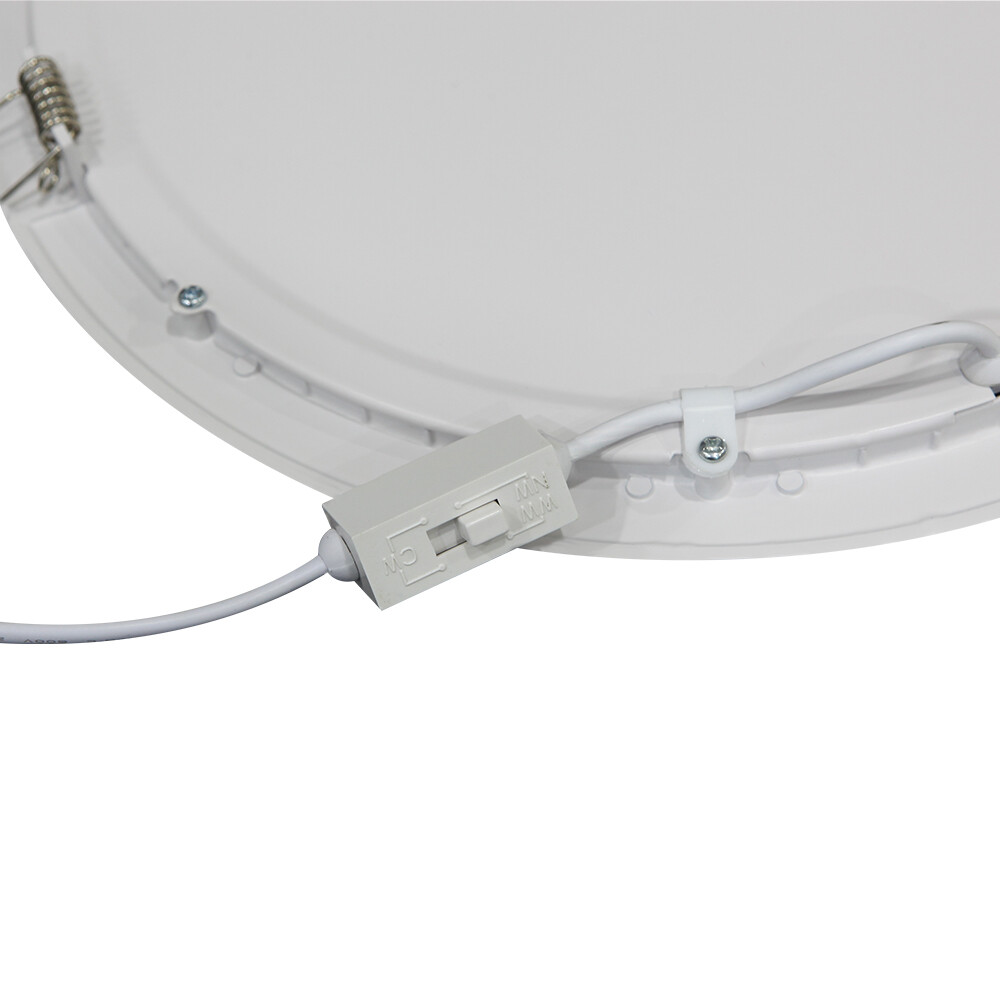

Dip switch

3000-6000K

LED

2835

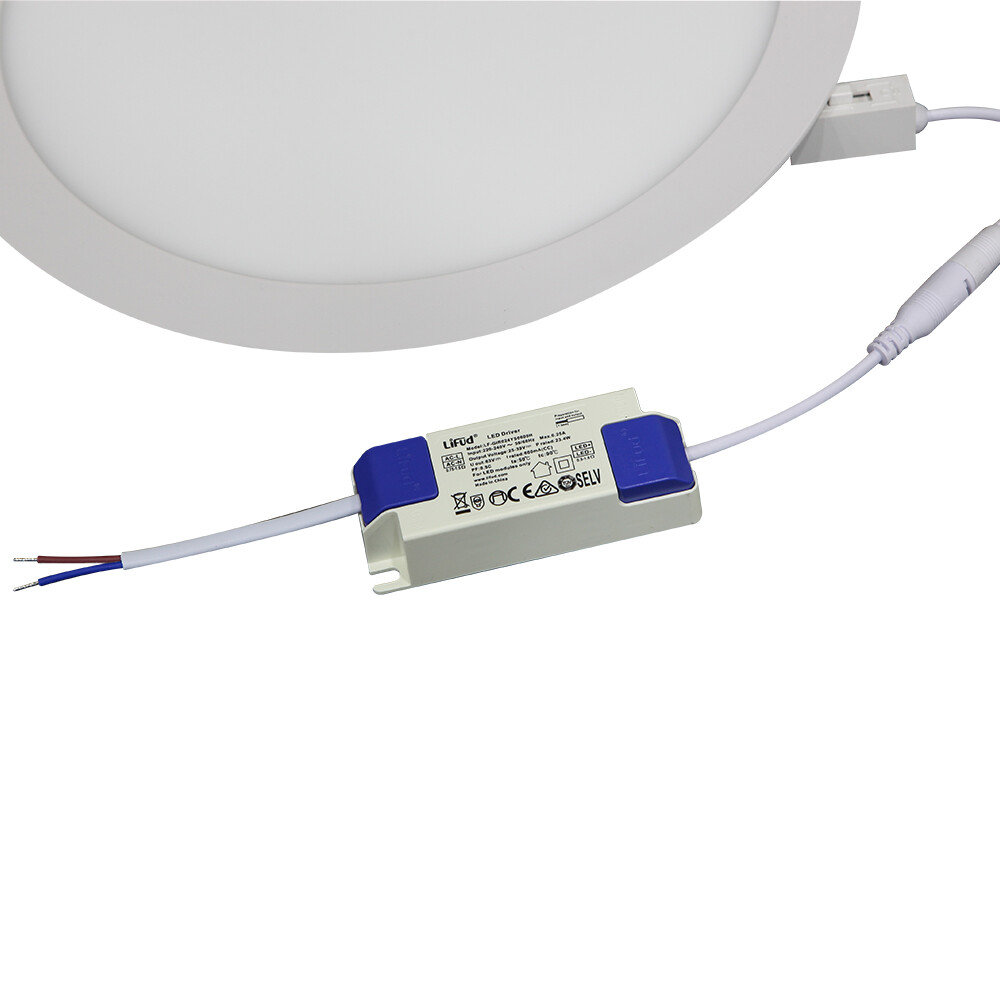

LED Driver

AC:220-240v  DC:25-42V

CRI

≥80

Beam Angle (°)

120°

LED Driver

Built-out

Dimming Option

Triac

Electrical Class

ClassⅡ

Ingress Protection (IP Rating)

IP20

Product Finishing(Base)

White

Materials of Optics

PS(Diffuser)

Materials of Housing

Aluminum

Lifetime (hr)

40,000h

Glow wire test (℃ )

650℃

Operating Temp. (℃ )

-20℃ ~40℃

Storage Temp. (℃ )

-20℃ ~65℃

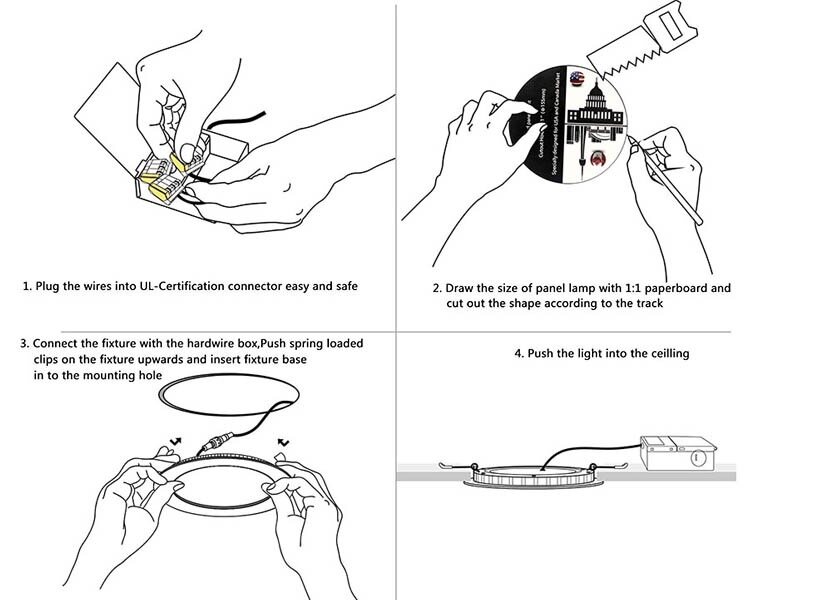

Installation

Recessed
