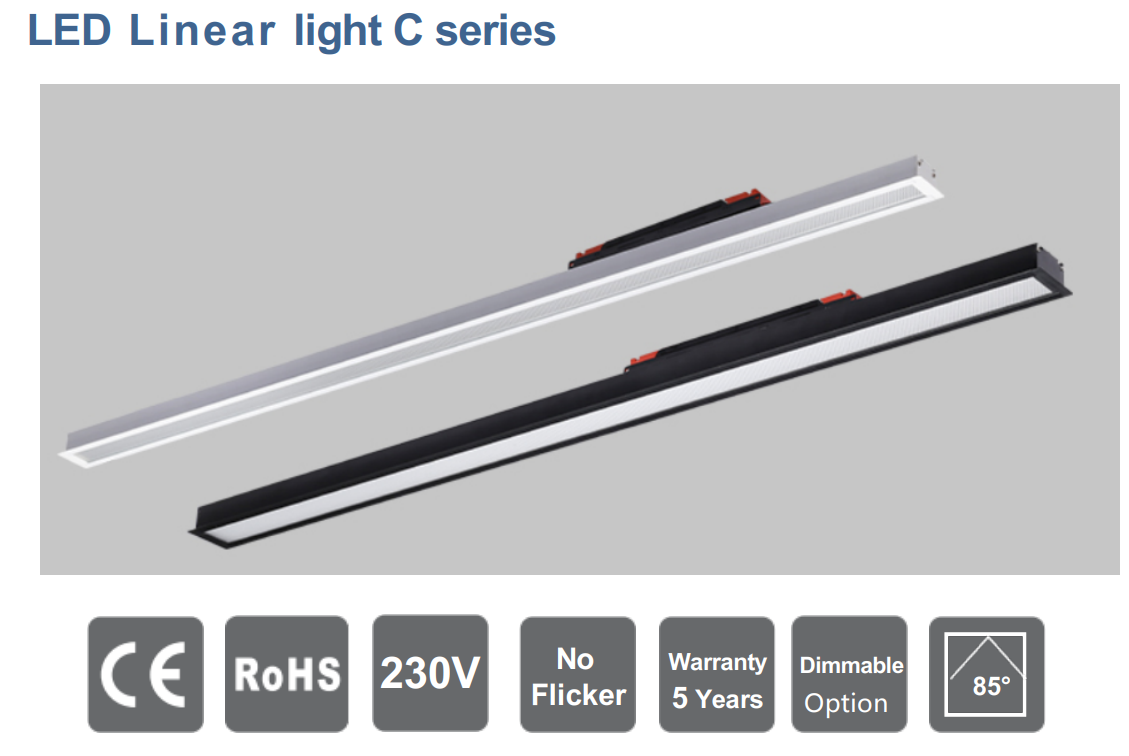

LED Linear light C series

Product Introduction

Features linear lights adopts modernism design style, simple and stylish linear lights with stable quality and high luminous efficiency, exquisite & durable and good heat dissipation Slim appearance,no visible screws,infinite linkable.Frame to be of a high-quality finish, All components and the finished products up to CE compliant (EMC, LVD & ROHS) and built in accordance with the relevant sections of EN60598 Warranty. lighting to provide 5-year warranty

Product Downloads

Overview

MODEL TYPE	TC-RP-C5030-U12	TC-RP-C5030-U18	TC-RP-C5030-U24	TC-RP-C7035-U12	TC-RP-C7035-U18	TC-RP-C7035-U24
Size( mm)	L1210W50H30	L1810W50H30	L2410W50H30	L1210W70H35	L1810W70H35	L2410W70H35
Input(V)	AC200～240V(Option AC100-277V)
Frequency domain (Hz)	50/60 Hz			50/60 Hz		50/60 Hz
Input current	Max0.25A	Max0.38A	Max0.5A	Max0.25A	Max0.38A	Max0.5A
Rated power(W)	40W	60W	80W	40W	60W	80W
Power Factor(PF)	>0.9
Dimmable	Option:Dali/0-10V
THD	<15%
Lumens( Im)	38001 m	5700I m	7600lm	38001 m	5700I m	7600lm
CCT(K)	3000-6500K
CRI	Ra≥ 80
SDCM	<6
Beam Angle	85°
UGR	UGR<19
LEDs	SMD2835
Life Span (Hrs)	≥35000H
Material	AL+PS+PC
Body color	White,Silver,Black
Protection class (IP)	IP20( indoor)
Operating temperature	-20℃~ 45℃
Operating humidity	10%～90%R.H
Stocking temperature &humidity	-40℃~80℃、5%～95%R.H.
Product certification	CE
Environmental directive	ROHS
