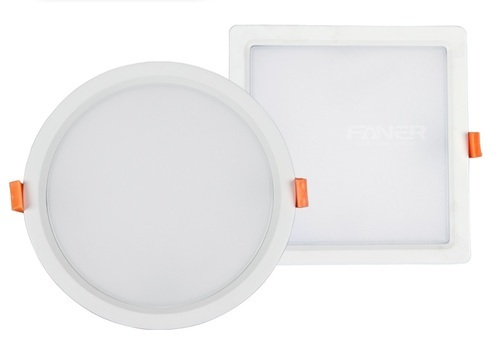

Small Round and Square Panel Light LED panel DOB

Product Introduction

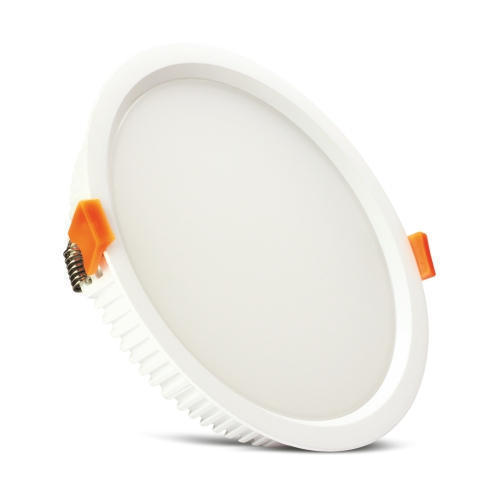

KEY BENEFIT FOR DISTRIBUTORS & PROJECTS • Backlit DOB Technology — Superior light uniformity and higher efficiency (~90lm/W) compared to traditional edge-lit panels. Slim profile with excellent thermal performance. • Dual Shape Design (Round + Square) — One series covers both popular aesthetics. Perfect for modern offices, hotels, commercial ceilings and residential projects. • Tool-free Spring Clip Installation (orange clips) — Cut hole, push & clip. Extremely fast for contractors. Same instal

Product Downloads

Overview

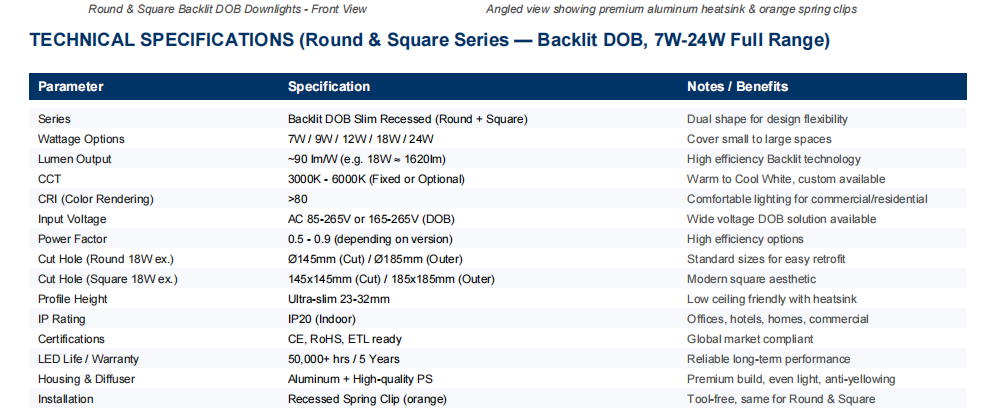

Products Parameters	Out Size±0.1	Rated Power	Out Size±1	Cut Size±2	output Voltage（V）	PF	lm ±10%
	3.5 inch	7W	¢95	¢72	85-265V	0.45-0.55	420LM
	4inch	9W	¢118	¢95	85-265V	0.45-0.55	600LM
	5inch	12W	¢146	¢115	85-265V	0.45-0.55	820LM
	8inch	18W	¢185	¢145	85-265V	0.45-0.55	1350LM
	9inch	24W	¢220	¢175	85-265V	0.45-0.55	2000LM
	3.5 inch	7W	120*120	105*105	85-265V	0.45-0.55	420LM
	4inch	9W	148*148	128*128	85-265V	0.45-0.55	600LM
	5inch	12W	170*170	150*150	85-265V	0.45-0.55	820LM
	8inch	18W	220*220	200*200	85-265V	0.45-0.55	1350LM
	9inch	24W	300*300	280*280	85-265V	0.45-0.55	2000LM
Gerneral	CCT Dip switch			3000-6000K
	LED			2835
	LED Driver			AC:220-240v DC:25-42V
	CRI			≥70
	Beam Angle (°)			120°
	LED Driver			Built-out
	Dimming Option			Triac
	Electrical Class			ClassⅡ
	Ingress Protection (IP Rating)			IP20
	Product Finishing(Base)			White
	Materials of Optics			PS(Diffuser)
	Materials of Housing			Aluminum
	Lifetime (hr)			40,000h
	Glow wire test (℃ )			650℃
	Operating Temp. (℃ )			-20℃ ~40℃
	Storage Temp. (℃ )			-20℃ ~65℃
	Installation			Recessed
