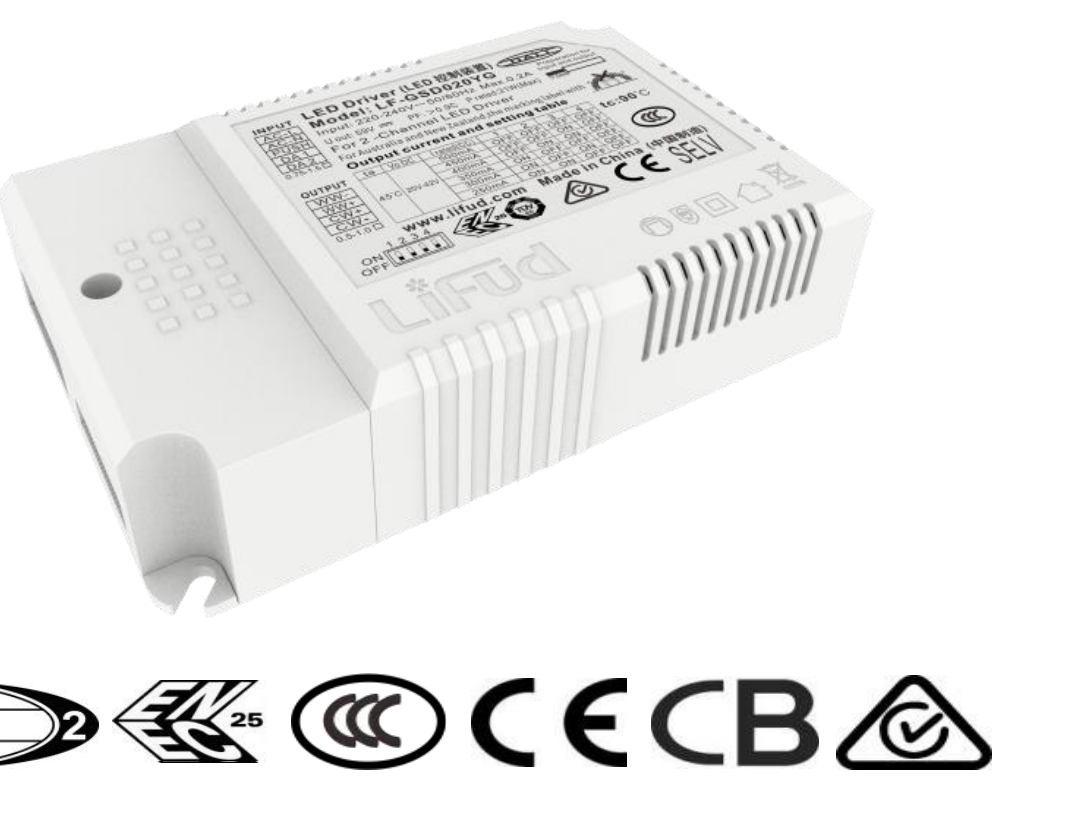

DALI-2 Tunable White Flicker Free LED Driver LF-GSDXXX series

Product Introduction

Features IP20 Suitable for Class II light fixtures Constant current output. The output current can be adjusted via the DIP switch Built-in active power factor correction function Standby power consumption: <0.5W DALI dimming (The logarithmic dimming curve or the linear dimming curve can be selected via the software) Push dimming Adjustable CCT range: 2700K-6500K 5-year warranty (Please refer to the warranty condition.)

Product Downloads

Overview

Model	SPECIFICATION	ENEC including TUV RCM including SAA
LF-GSD040YC	AC220-240V DC25-42V 550-1050mA 40W	CE、CB、ENEC、RCM、SAA、Rohs
LF-GSD060YC	AC220-240V DC25-42V 1100-1500mA 63W	CE、CB、ENEC、RCM、SAA、Rohs
LF-GSD020YG	AC220-240V DC20-42V 250-500mA 20W	CE、CB、ENEC、RCM、SAA、Rohs
LF-GSD040YG	AC220-240V DC20-42V 550-1050mA 40W	CE、CB、ENEC、RCM、SAA、Rohs
IP Rating	IP20
dimming	0.1% dimming depth
Warranty Condition	5 years (Tc≤86℃)
DALI Standard	IEC 62386-101 102 207: DALI 2.0
Working Temperature:-20℃ - +45℃ Working Humidity:20-90%RH (no condensation) Storage Temperature/Humidity:-30℃ - 80℃ (six months under class I environment); 10-90%RH (no condensation) Atmospheric Pressure:86kPa~106kPa
