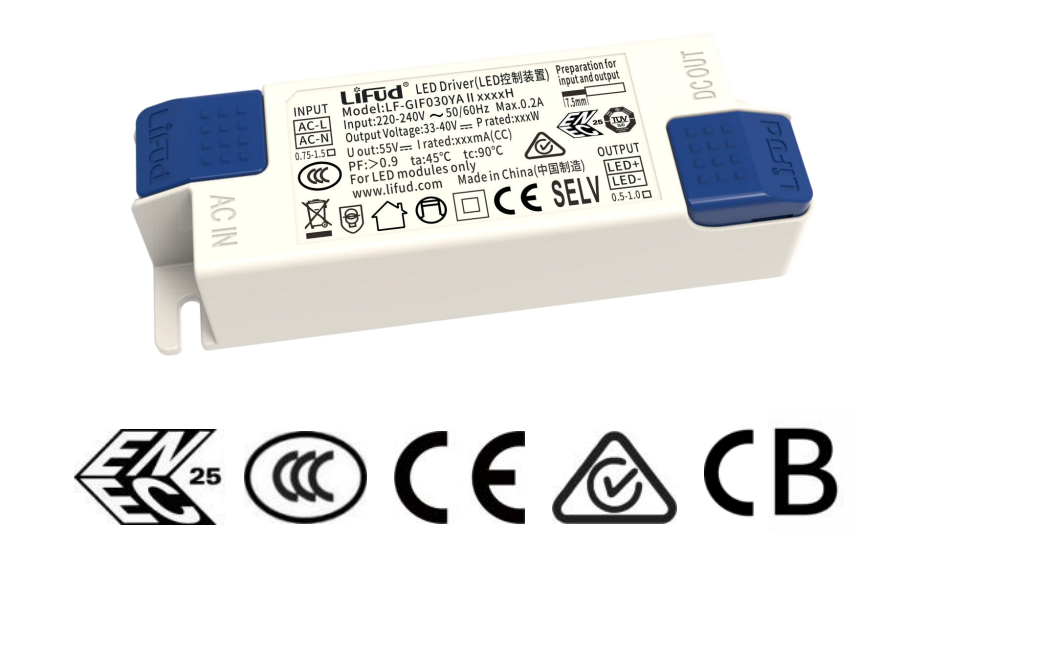

LIFUD Non-dimming LED Driver LF-GIFxxxxxx series

LF-GIFxxxYS a isolated flicker-free LED driver. Its rated input voltage ranges from220 to 240Vacandoutput current ranges from 350 to 1550mA. It is suitable for Class II light fixtures, including indoor officelighting,decorative lighting and residential lighting etc.

Model

SPECIFICATION

ENEC including TUV RCM including SAA

LF-GIF018YS

AC220-240V DC25-40V 350-500mA
 18W  PF>0.95

CE、CB、ENEC、RCM、SAA、UKCA、Rohs

LF-GIF024YS

AC220-240V DC25-42V 450-600mA
18- 24W   PF>0.95

CE、CB、ENEC、RCM、SAA、UKCA、Rohs

LF-GIF030YS

AC220-240V DC33-40V 550-750mA
20-28W   PF>0.95

CE、CB、ENEC、RCM、SAA、UKCA、Rohs

LF-GIF040YS

AC220-240V DC33-40V  800-1050mA
 40W PF>0.95

CE、CB、ENEC、RCM、SAA、UKCA、Rohs

LF-GIF050YS

AC220-240V DC33-40V
1100/1150/1200/1250/1300mA 50W

CE、CB、ENEC、RCM、SAA、Rohs

LF-GIF060YS

AC220-240V DC30-40V
 1350/1400/1450/1500/1550mA   60W

CE、CB、ENEC、RCM、SAA、Rohs

LF-GIF030YAII

AC220-240V DC33-40V
550/600/650/700/750/800mA
  30W  PF>0.95   ≥90%

CE、CB、ENEC、RCM、SAA、UKCA、Rohs

LF-GIF040YAII

AC220-240V  DC33-40V
850/900/950/1000/1050 mA
 38-40W PF>0.95   ≥90%

CE、CB、ENEC、RCM、SAA、UKCA、Rohs

LF-GIF050YAII

AC220-240V DC33-40V
1100/1150/1200/1250/1300mA
50W  F>0.95   ≥90%

CE、CB、ENEC、RCM、SAA、UKCA、Rohs

LF-GIF060YAII

AC220-240V DC33-40V
1350/1400/1450/1500/1550mA
60W F>0.95   ≥90%

CE、CB、ENEC、RCM、SAA、UKCA、Rohs

LF-GIF030YCII

 AC100-277V DC30-40V   30W
550/600/650/ 700/750mA
PF≥0.95   ≥87%

CE、CB、ENEC、RCM、SAA、Rohs

LF-GIF040YCII

  AC100-277V  DC30-40V   40W
800/850/900/950/1000/1050mA
PF≥0.95   ≥88.5%

CE、CB、ENEC、RCM、SAA、Rohs

LF-GIF030ES

LF-GIF030ES  AC:220-240V DC9-42V
550/600/650/700/750mA   5-31.5W

LF-GIF040ES

LF-GIF040ES   AC220-240V DC9-42V
800/850/900/950/1000-1050mA  7.2-40W

LF-GIF050ES

LF-GIF050ES   AC220-240V DC30-40V
1100 / 1150 / 1200 / 1250 /1300mA 33-50W
