DILI LED DRIVER LF-AADxxxxxx Series

Product Introduction

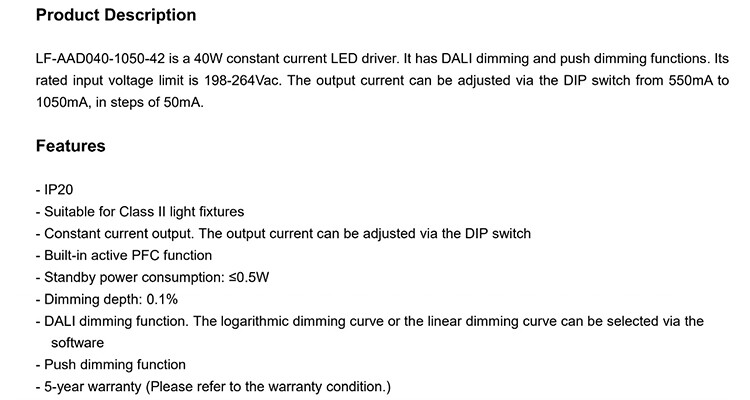

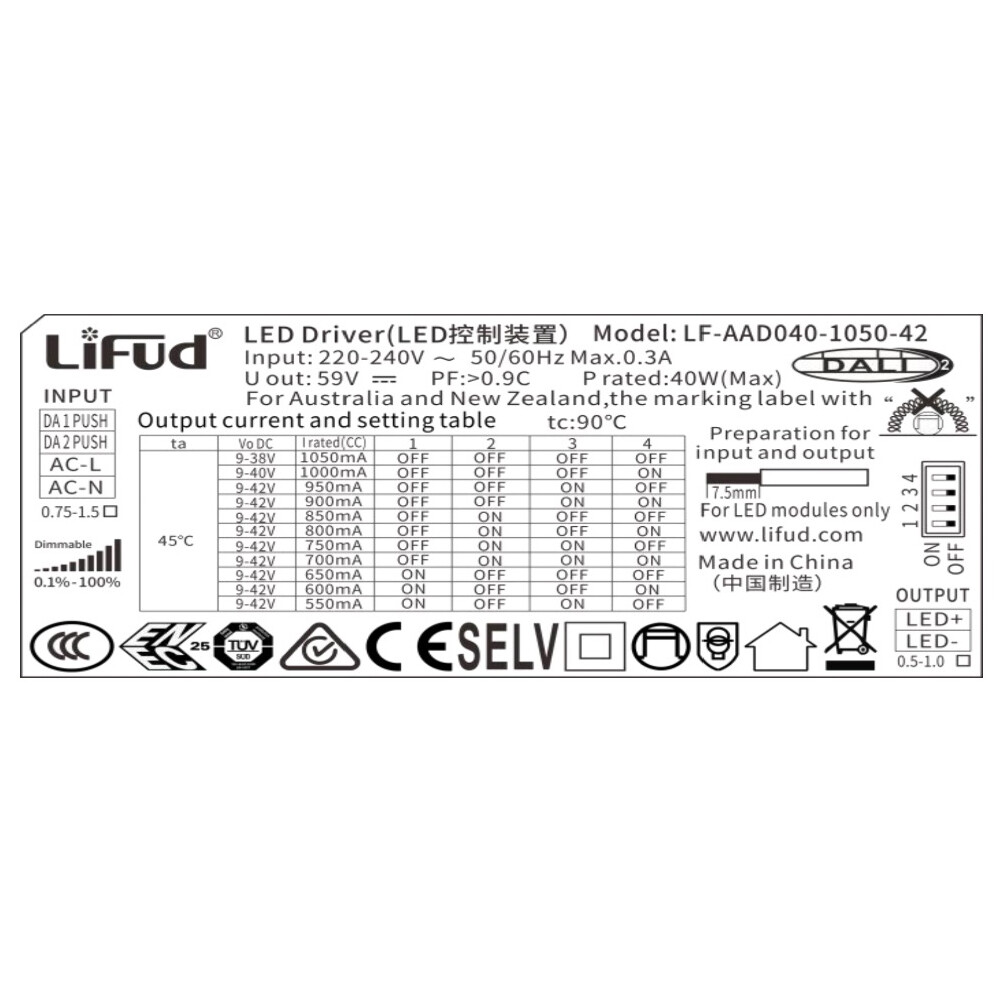

It has DALI dimming and push dimming functions. Itsrated input voltage limit is 198-264Vac. The output current can be adjusted via the DIP switch from250mAto1050mA, in steps of 50mA - IP20 - Suitable for Class II light fixtures - Constant current output. The output current can be adjusted via the DIP switch - Built-in active PFC function - Standby power consumption: ≤0.5W - Dimming depth: 0.1% - DALI dimming function.

Product Downloads

Overview

Model	SPECIFICATION	ENEC including TUV RCM including SAA
LF-AAD020-0500-42	21W With DIP AC:220-240V DC:9-42v 250-500mA	CE、CB、ENEC、RCM、SAA、Rohs
LF-AAD030-0750-42	DALI AC 220-240V DC 9-42V 400-750mA 50/60Hz 30W	CE、CB、ENEC、RCM、SAA、Rohs
LF-AAD040-1050-42	DALI AC 220-240V DC 9-42V 550-1050mA 50/60Hz 42W	CE、CB、ENEC、RCM、SAA、Rohs
IP Rating	IP20
RoHS	RoHS
Warranty Condition	5 years (Tc≤86℃)

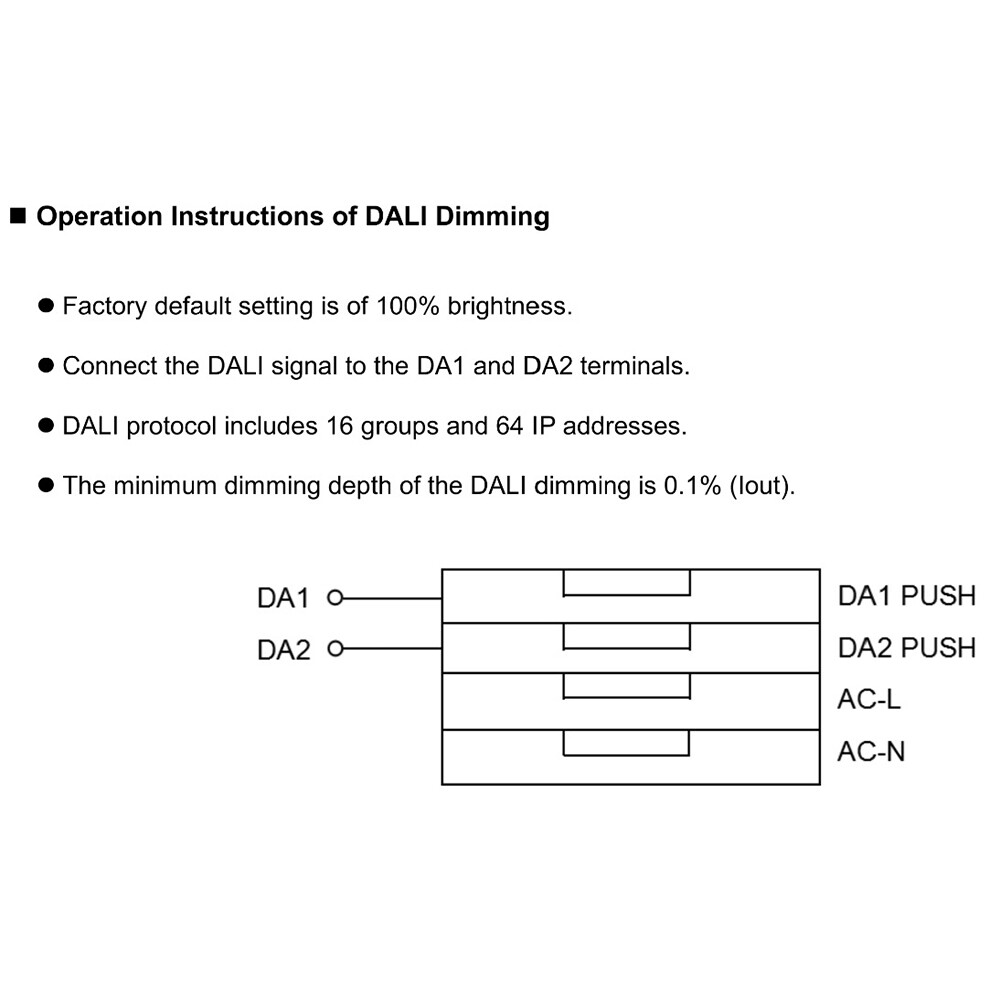

DALI Standard	IEC 62386-101 102 207: DALI 2.0
Working Temperature:-20℃ - +45℃ Working Humidity:20-90%RH (no condensation) Storage Temperature/Humidity:-30℃ - 80℃ (six months under class I environment); 10-90%RH (no condensation) Atmospheric Pressure:86kPa~106kPa
