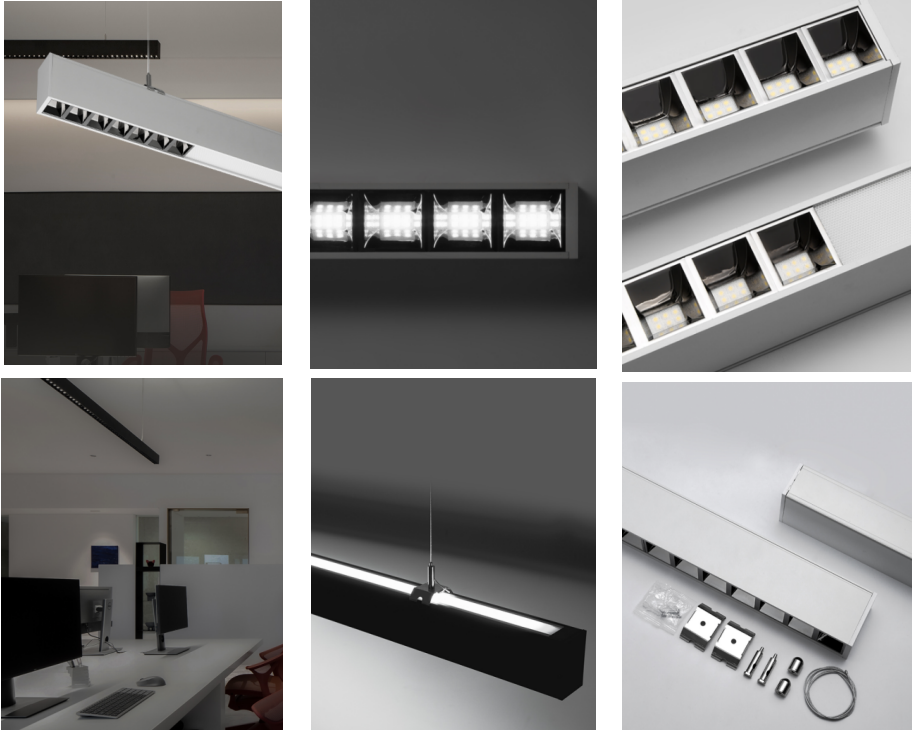

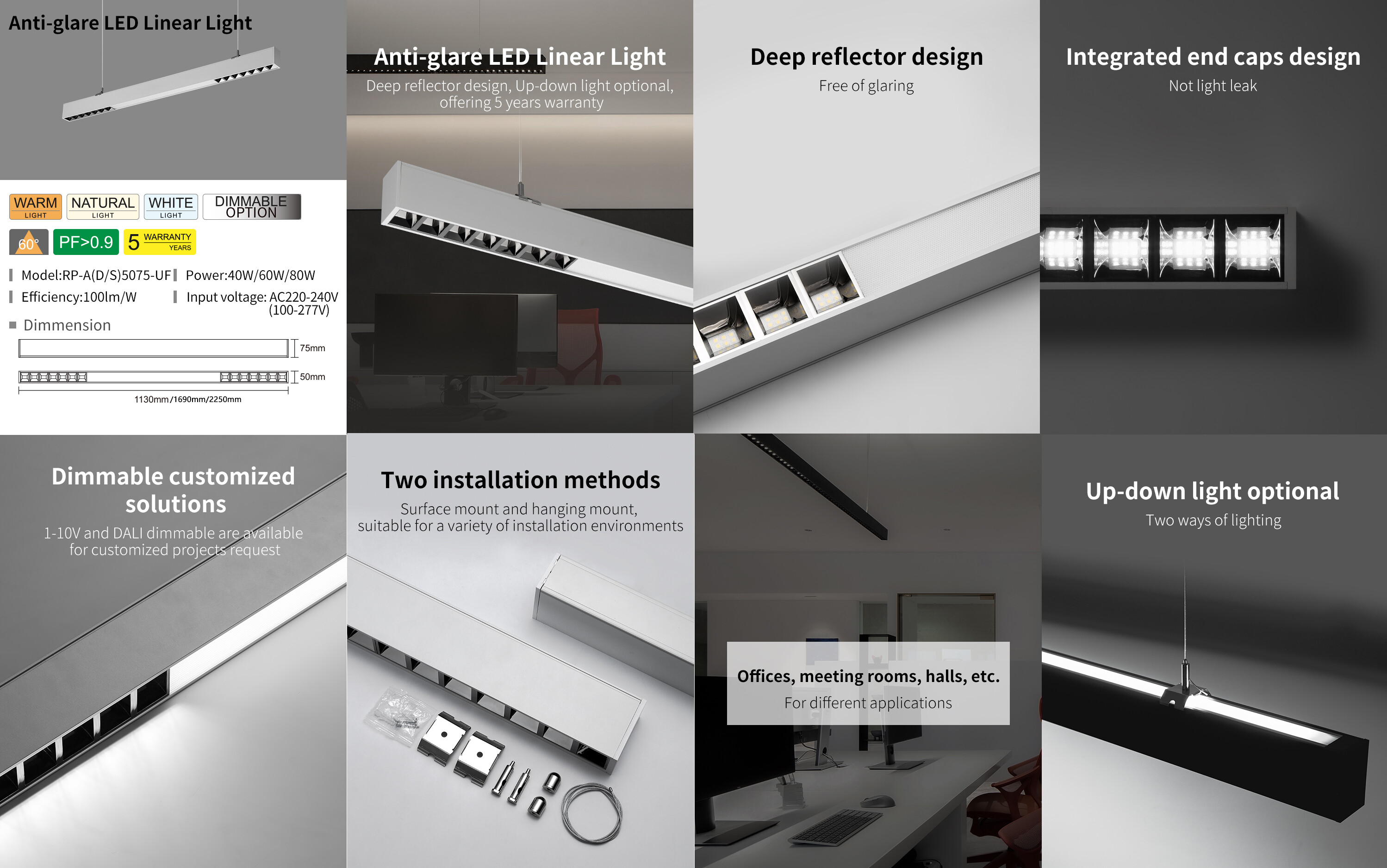

A5075-UF Series Architectural LED Linear Pendant Light with Anti-Glare Louver
Product Introduction
Product Downloads
Overview
MODEL | TC-RP-A(D/S)5075-UF12 | TC-RP-A(D/S)5075-UF17 | TC-RP-A(D/S)5075-UF23 |
Size( mm) | L1130*W50*H75 | L1690*W50*H75 | L2250*W50*H75 |
Input( V) | AC200～ 240V(Option AC100-277V) | ||
Frequency domain | 50/60 Hz | ||
Input current | Max0.25A | Max0.38A | Max0.5A |
Rated power(W) | 40W | 60W | 80W |
Lumens(I m) | 3800l m | 57001 m | 7600lm |
Power Factor (PF) | >0.9 | ||
Dimmable | Option :Dali/0-10V | ||
THD | <15% | ||
CCT(K) | 3000-6500K | ||
CRI | Ra≥80 | ||
SDCM | <6 | ||
Beam Angle | 60° | ||
UGR | UGR<13 | ||
LEDs | SMD2835 | ||
Life Span(Hrs) | ≥35000H | ||
Material | AL+PS+PC | ||
Body color | White,Black,Silver | ||
Protection class(IP) | IP20( indoor) | ||
Operating | -20℃~ 45℃ | ||
Operating humidity | 10%～90%R.H. | ||
Stocking temperature | -40℃~ 80℃、5%～95%R.H. | ||
Product certification | CE | ||
Environmental directive | ROHS | ||
