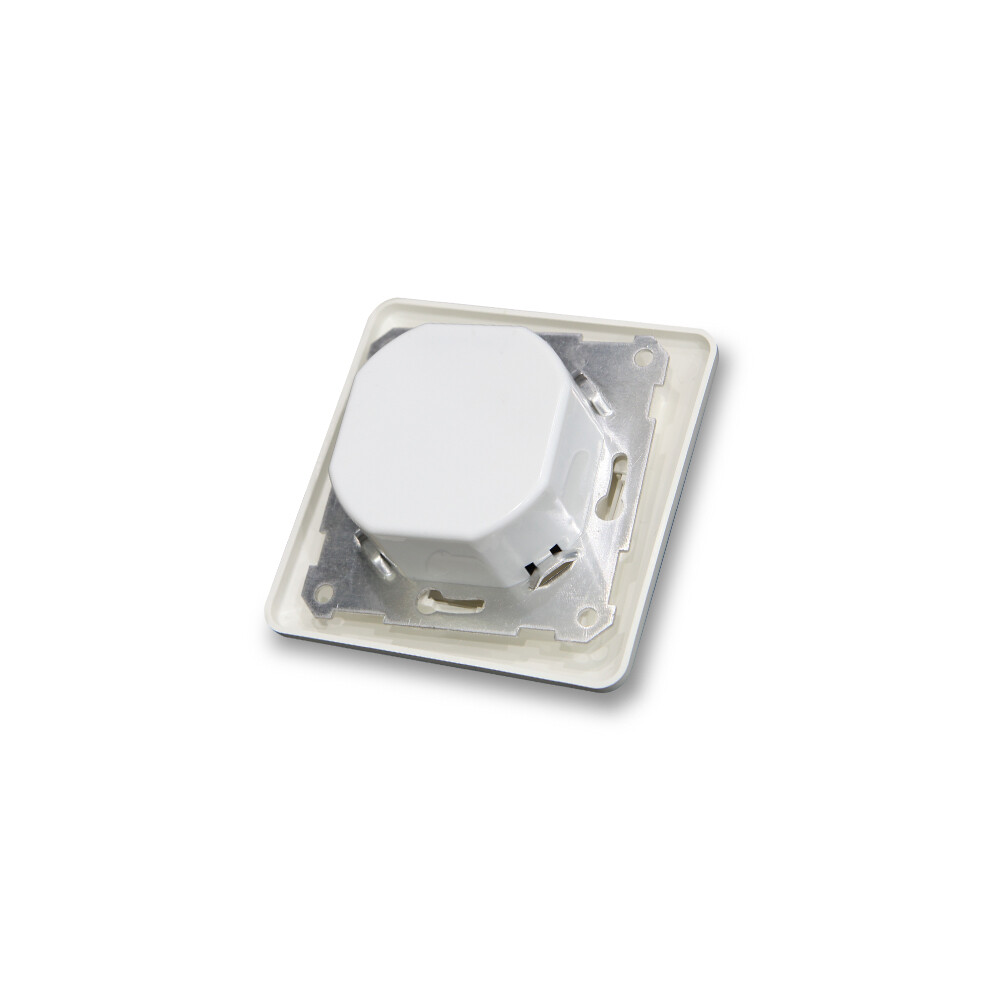

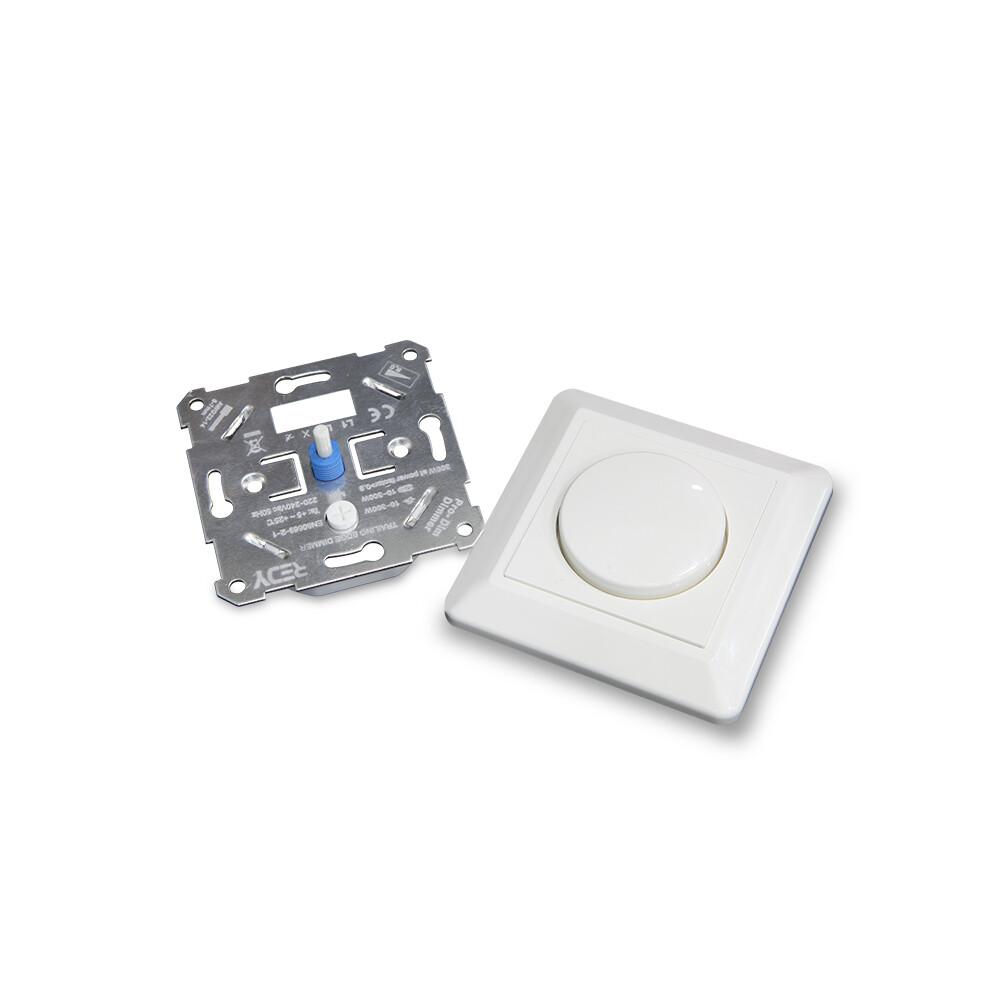

Genuine 0/1-10V Smart Switch Lighting Accessory Light Led Controller Dimmer

一、 Technical Specifications:

1. Maximum switching load power: 110V 1000W, 220V 2000W

2. High current switch: 10A for reliable shutdown (complete turn off)

3. Effective dimming signal current: ≤ 50mA

4. Adjust voltage: 0.5-10V

5. Dimming range: 5-100% stepless dimming, no stroboscopic

6. Minimum brightness preset range: 5%-50%

7. 100% compatible with drives with standard 0/1-10V dimming signal on the

market

8. Standard EU type panel, size 84*84mm

二、 The Use Of Instructions:

Note: Connect the load and signal line first, then connect the AC input line.

Make sure there is no short circuit between the connection lines before

powering on.

1, L IN is the hot line input

2. L OUT is the live line output, connected to the input L end of the 0/1-10V dimming LED driver.

3. Dimming signal input, D+ is the dimming signal positive, D- is the dimming signal negative

Figure 1 without switch wiring diagram

Figure 2 with switch wiring diagram
