TENCLOCK D26 Series Surface Mounted LED Ceiling Light (Round & Square) - 3CCT Selectable + Power Adj
Product Introduction
Product Downloads
Overview
Model | Power | Diameter & Height | Cut-out | Voltage | CCT | CRI | PF | Power Selectable | Certification |
EW-D26AR-12W | 12W | 脴180 脳 25mm | 55-150mm | 175-260V | 3000K/4000K/6500K | >80 | >0.5 | 6W-9W-12W | CB, CE, ERP, RoHS |
EW-D26AR-18W | 18W | 脴230 脳 25mm | 55-200mm | 175-260V | 3000K/4000K/6500K | >80 | >0.5 | 9W-12W-18W | CB, CE, ERP, RoHS |
EW-D26AR-24W | 24W | 脴300 脳 25mm | 55-280mm | 175-260V | 3000K/4000K/6500K | >80 | >0.5 | 12W-18W-24W | CB, CE, ERP, RoHS |
EW-D26AR-30W | 30W | 脴400 脳 25mm | 55-280mm | 175-260V | 3000K/4000K/6500K | >80 | >0.9 | 18W-24W-30W | CB, CE, ERP, RoHS |
Model | Power | Size | Cut-out | Voltage | CCT | CRI | PF | Power Selectable | Certification |
EW-D26AF-18W | 18W | 230 脳 230mm | 55-200mm | 175-260V | 3000K/4000K/6500K | >80 | >0.5 | 9W-12W-18W | CB, CE, ERP, RoHS |
EW-D26AF-24W | 24W | 300 脳 300mm | 55-280mm | 175-260V | 3000K/4000K/6500K | >80 | >0.5 | 12W-18W-24W | CB, CE, ERP, RoHS |
EW-D26AF-30W | 30W | 400 脳 400mm | 55-280mm | 175-260V | 3000K/4000K/6500K | >80 | >0.9 | 18W-24W-30W | CB, CE, ERP, RoHS |
Parameter | Specification |
Color Temperature | 3000K / 4000K / 6500K (Back switch selectable) |
Power Adjustment | 3-level power selectable via back switch |
Optional Function | Microwave sensor (auto on/off) |
Material | Premium PC housing + high-transmittance diffuser |
Driver | Non-isolated |
Flicker | PST < 1, SVM < 0.4 |
IP / IK Rating | IP40 / IK06 |

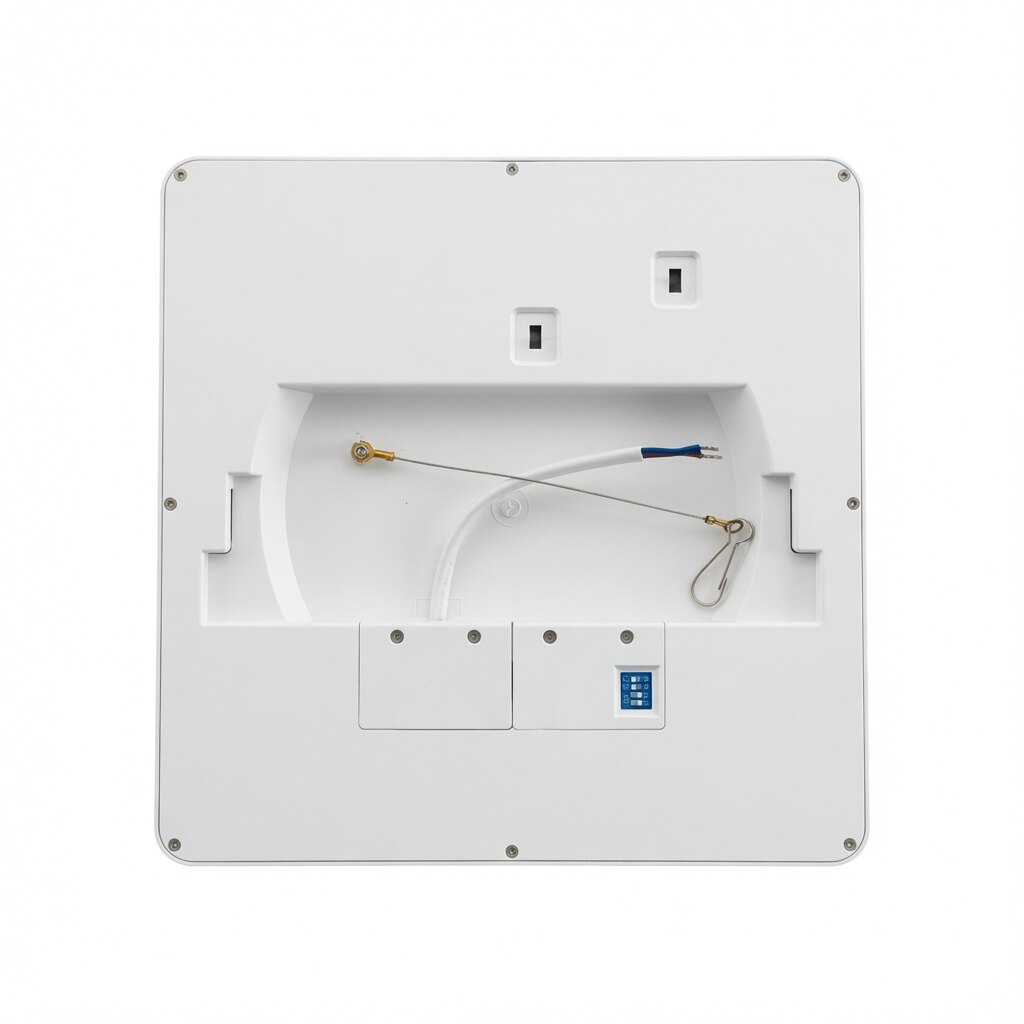

Installation | Surface mount with adjustable spring clips + safety rope |
Certification | CB, CE, ERP, RoHS |
Warranty | 2 years |
