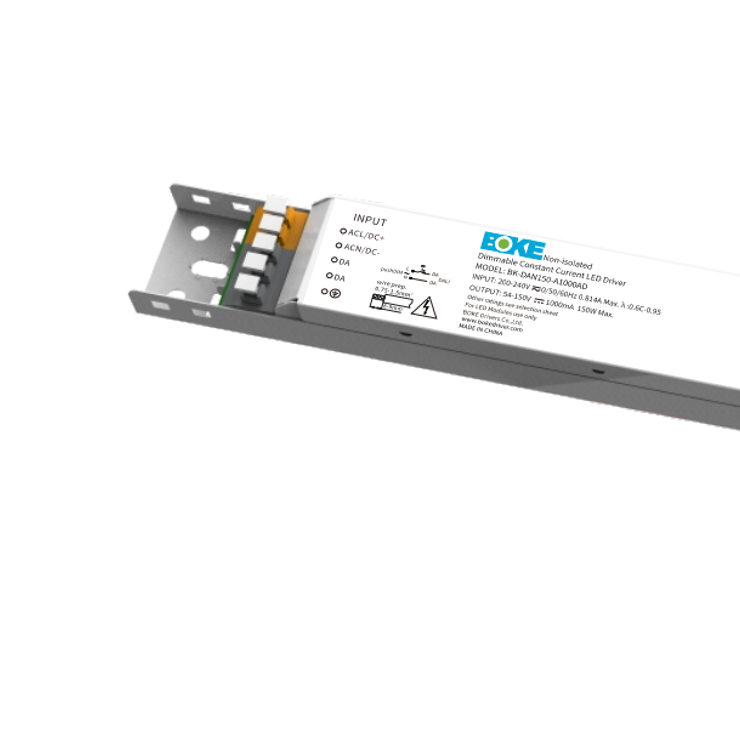

Non-isolated constant current linear driver dimmable BK- DENXXX Series(DALI-2+pushDIM)
Product Introduction
- Input and output non-isolated
- Support DALI-2+pushDIM dimming mode
- 16-level current output can be realized by DIP-switc
- High PF, high efficiency, low THD
- Suitable for emergency lighting acc. to EN 50172
- Suitable for built-in use of Class I lamps
- Nominal life-time up to 100,000 h
- 5-year guarantee
Product Downloads
Overview
Model | Output power | Output current | Input voltage | Output voltage | Dimension | Certifications |
| 76.5W MAX | 0.1-0.45A | 200-240VAC/DC | 54-170/180/190/200VDC | L245*W30*H21mm | CE, ENEC, UKCA, RCM, EL, DALI-2 |
BK-DEN100-A0800Ad | 100W MAX. | 0.25-0.8A | 200-240VAC/DC | 54-125/133/142/153/166/181/200VD | L285*W30*H21mm | CE, ENEC, UKCA, RCM, EL, DALI-2 |
