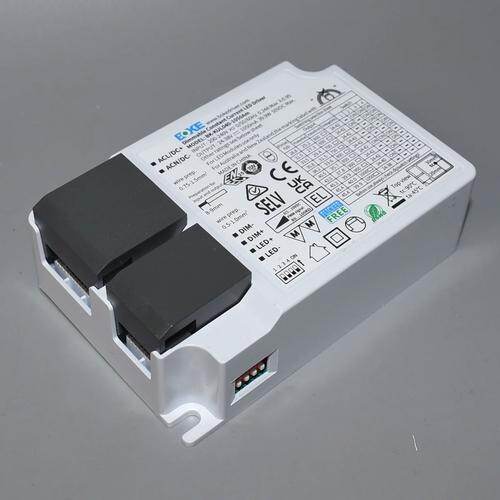

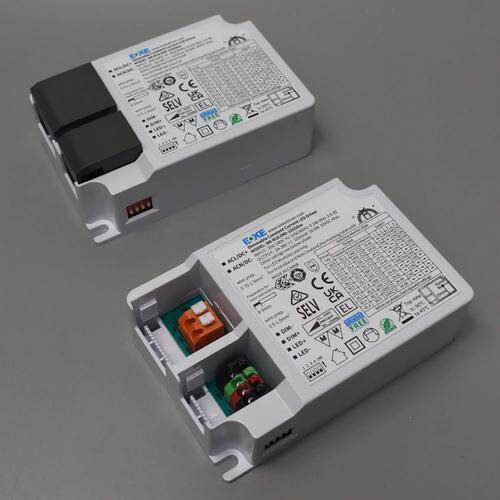

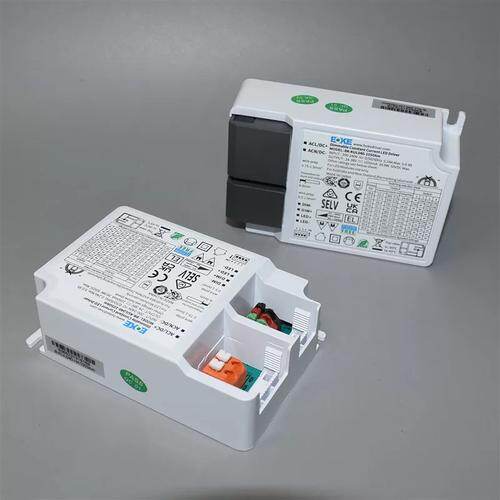

BOKE Dimmable LED driver BK-KULXXX-XXXXAm series
Product Introduction
- Isolated 1-10V/10V PWM/Rx dimming interface
- Loop-in and loop-out wiring without junction box
- 10-level current output can be realized by DIP-switch, easier to adjust
the luminaire power
- Soft dimming and flicker-free at any brightness, meets the new requirements of
ErP ce
Product Downloads
Overview
Model | Output power | Output current | Input voltage | Output voltage | Dimension | Certifications |
BK-KUL030-0800Am | 30.4W MAX | 0.35-0.8A | 200-240VAC/DC | 24-38/40/42VDC | L103*W68.5*H31mm | CE,ENEC,RCM,CCC,UKCA,EL |
BK-KUL040-1050Am | 40W MAX. | 0.6-1.05A | 200-240VAC/DC | 24-38/40/42VDC | L103*W68.5*H31mm | CE,ENEC,RCM,CCC,UKCA,EL |
BK-KUL050-1300Am | 49.4W MAX. | 0.85-1.3A | 200-240VAC/DC | 24-38/40/42VDC | L123*W78.5*H31mm | CE,ENEC,RCM,CCC,UKCA,EL |
BK-KUL060-1650Am | 62.7W MAX. | 0.85-1.3A | 200-240VAC/DC | 24-38/40/42VDC | L123*W78.5*H31mm | CE,ENEC,RCM,CCC,UKCA,EL |
| ||||||
