Constant current independent color temperature LED-driver BK-DWLXXX Series (DALI-2+pushDIM+pushCCT)
Product Introduction
- Input and output non-isolated

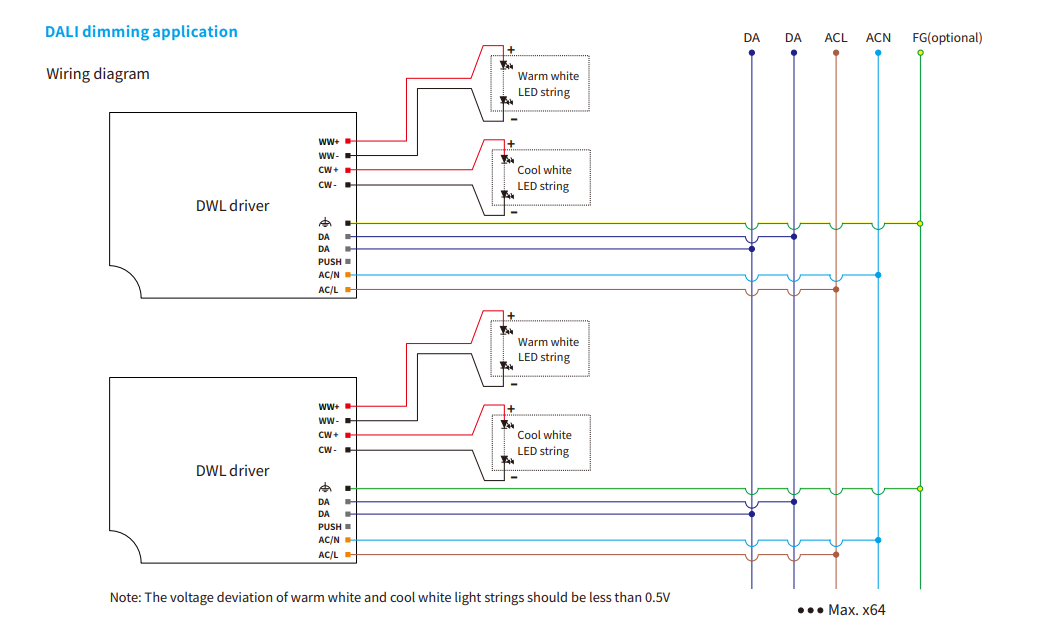

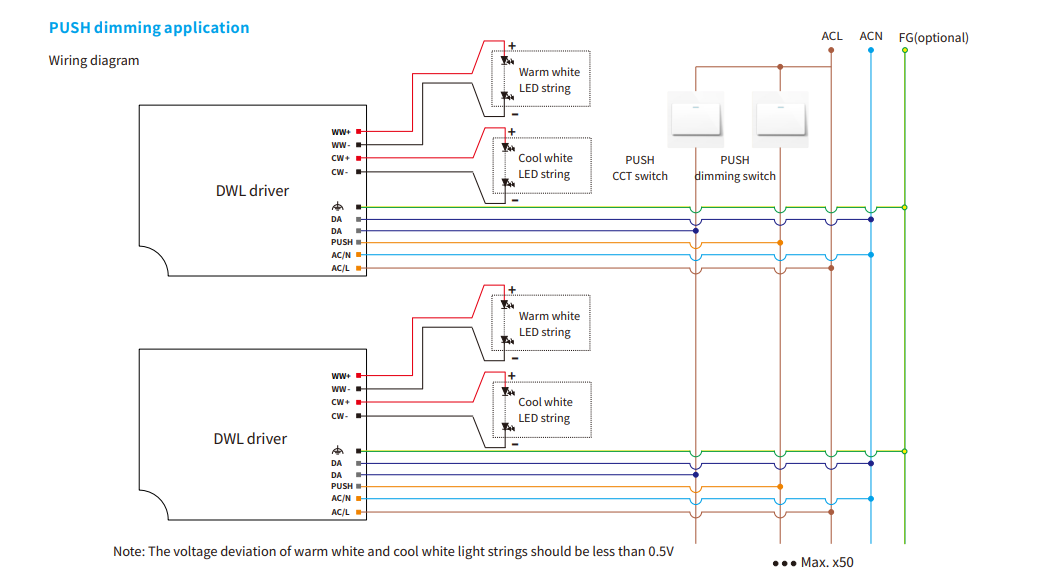

- Support DALI-2+pushDIM dimming mode
- 16-level current output can be realized by DIP-switc
- High PF, high efficiency, low THD
- Suitable for emergency lighting acc. to EN 50172
- Suitable for built-in use of Class I lamps
- Nominal life-time up to 100,000 h
- 5-year guarantee
Product Downloads
Overview
Model | Output power | Output current | Output voltage | Dimension |
| 42.0W | 0.60-1.05 | 12-42VDC | L173.0*W75*H30mm |
BK-DWL060-1500AD | 63.0W | 1.05-1.50A | 12-42VDC | L191.5*W75*H30mm |
BK-DWL060-2000AD | 62.0W | 1.55-2.00A | 12-42VDC | L191.5*W75*H30mm |
