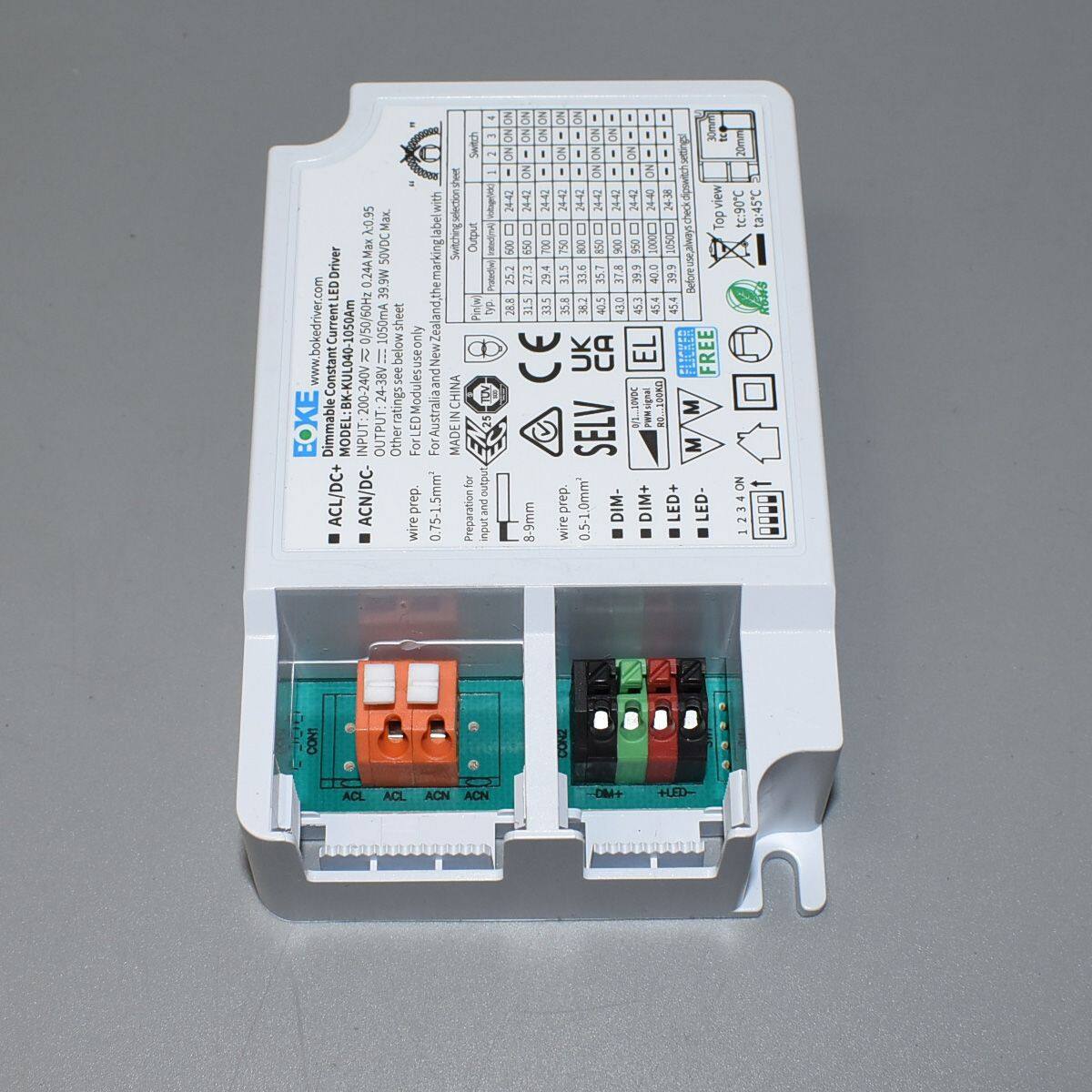

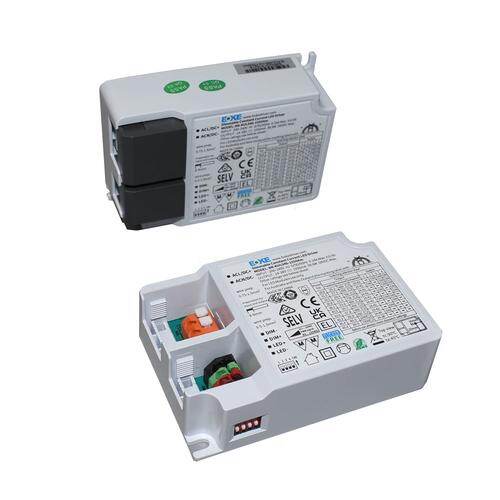

Current Independent Dimming Driver BK-DELXXX Series(DALI-2 + pushDIM)
Product Introduction
Product Downloads
Overview
Model | Input voltage | Output power | Output voltage | Output current | Dimension |
BK-DEL010-B0350Ad | 200-240VAC/DC | 11W MAX. | 6-42VDC | 0.1-0.35A | L117*W45.5*H24mm |
BK-DEL010-B0350ADL | 200-240VAC/DC | 11W MAX. | 6-42VDC | 0.1-0.35A | L145*W45.5*H29mm |
BK-DEL022-B0600Ad | 200-240VAC/DC | 23.1W MAX. | 6-42VDC | 0.225-0.6A | L117*W45.5*H29mm |
BK-DEL022-B0600ADL | 200-240VAC/DC | 23.1W MAX. | 6-42VDC | 0.225-0.6A | L145*W45.5*H29mm |
BK-DEL028-B0750Ad | 200-240VAC/DC | 28.5W MAX. | 6-42VDC | 0.3-0.75A | L117*W45.5*H29mm |
BK-DEL028-B0750ADL | 200-240VAC/DC | 28.5W MAX. | 6-42VDC | 0.3-0.75A | L145*W45.5*H29mm |
BK-DEL030-B0800Ad | 200-240VAC/DC | 30.4W MAX. | 6-42VDC | 0.25-0.8A | L103*W68.5*H30.5mm |
BK-DEL030-B0800ADL | 200-240VAC/DC | 30.4W MAX. | 6-42VDC | 0.25-0.8A | L140*W71*H30mm |
BK-DEL042-B0800Bd | 200-240VAC/DC | 38.4W MAX. | 6-48VDC | 0.25-0.8A | L103*W68.5*H30.5mm |
BK-DEL042-B0800BDL | 200-240VAC/DC | 38.4W MAX. | 6-48VDC | 0.25-0.8A | L140*W71*H30mm |
BK-DEL042-B1100Ad | 200-240VAC/DC | 42W MAX. | 6-42VDC | 0.45-1.1A | L103*W68.5*H30.5mm |
BK-DEL042-B1100ADL | 200-240VAC/DC | 42W MAX. | 6-42VDC | 0.45-1.1A | L140*W71*H30mm |
BK-DEL060-B2000Ad | 200-240VAC/DC | 61.2W MAX. | 6-42VDC | 0.8-2A | L123.5*W79.5*H31mm |
BK-DEL060-B2000ADL | 200-240VAC/DC | 61.2W MAX. | 6-42VDC | 0.8-2A | L160*W80.8*H30mm |
