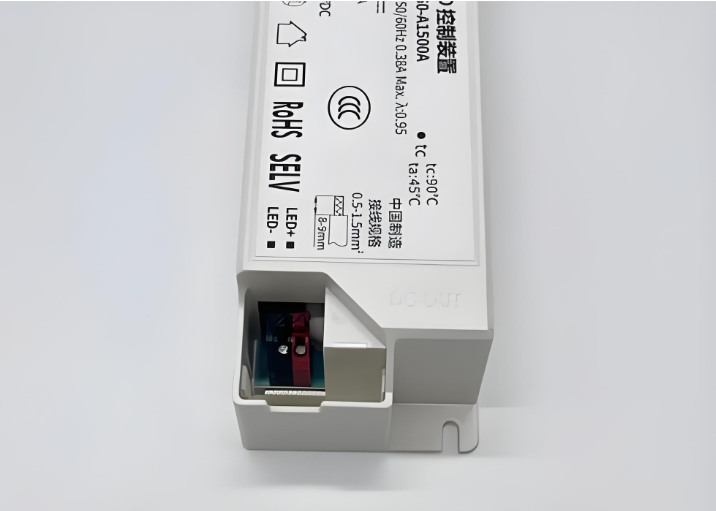

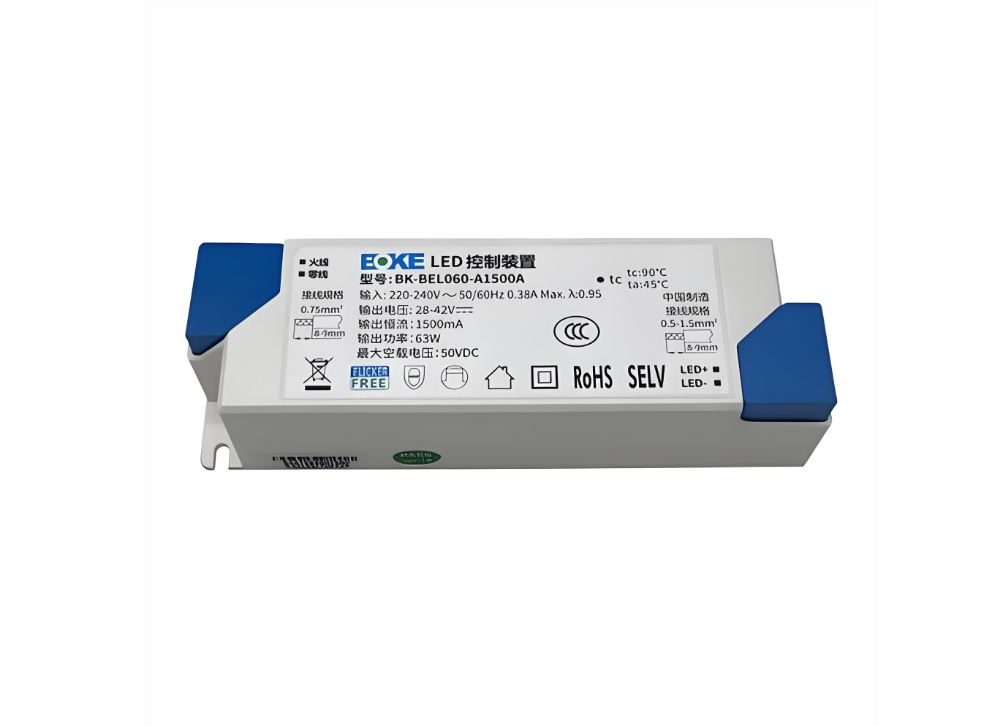

Constant current independent LED driver BK-BELXXX Series

Product Introduction

- Flicker-free output,which meets the requirement of ErP standard - High PF, high efficiency - Support central emergency application(100% output in DC input) - Support self-contained emergency application - Protective features (short-circuit,no-load protection ) - IP20 protection grade, indoor use - Nominal life-time up to 100,000 h - 5-year guarantee - Passed CE,ENEC,UKCA,RCM,CCC,EL and other certifications

Product Downloads

Overview

Model	SPECIFICATION	ENEC including TUV RCM including SAA
BK-BEL009	AC:200-240v, DC: 30-42V 150-250mA 10.5W Max PE:83.5%,PF>0.95	CB,ENEC,UKCA. TUV,CE.ROSH
BK-BEL013	AC:200-240v, DC: 30-42V 300mA 12.6W Max PE:84%,PF>0.95	CB,ENEC,UKCA. TUV,CE.ROSH
BK-BEL018	AC:200-240v, DC: 30-42V 400/450mA 16.8/18W Max PE:：88%,PF>0.95	CB,ENEC,UKCA. TUV,CE.ROSH
BK-BEL022	AC:220-240v, DC: 28-42v 500/550/600mA PF>0.97 21-22.8W PE:：88%,PF>0.97	CB,ENEC,UKCA. TUV,CE.ROSH
BK-BEL040C	BK-BEL040C 40W AC:200-240v, DC:28-42v 950-1000mA 40W PF>0.95 50/60Hz Max:0.24A	CB,ENEC,UKCA. TUV,CE.ROSH
BK-BEL042	AC:200-240v, DC:30-40v 1000-1100mA 40W PF>0.97 50/60Hz Max:0.24A	CB,ENEC,UKCA. TUV,CE.ROSH
BK-BEL50	40W AC:200-240v, 50W 28-42v 1050-1250mA PF>0.97 50/60Hz Max:0.24A	CB,ENEC,UKCA. TUV,CE.ROSH
BK-BEL060	BK-BEL060 60W AC:200-240v, DC:28-42v 1250-1650mA PF>0.97 50/60Hz Max:0.38A	CB,ENEC,UKCA. TUV,CE.ROSH
