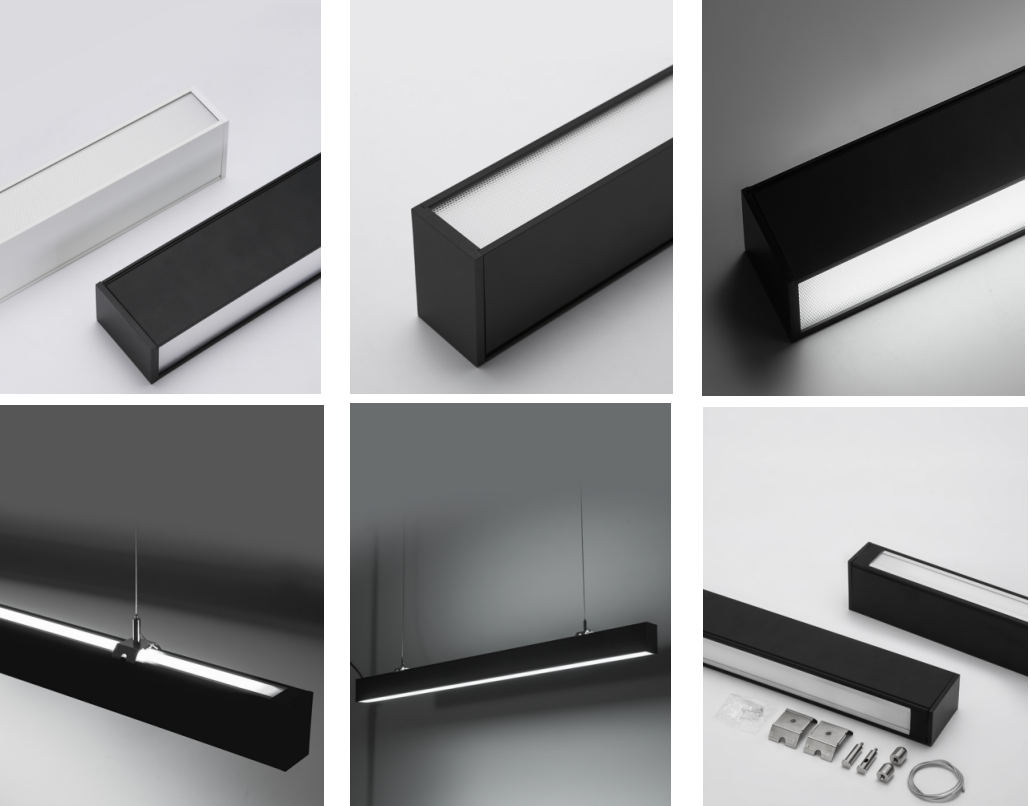

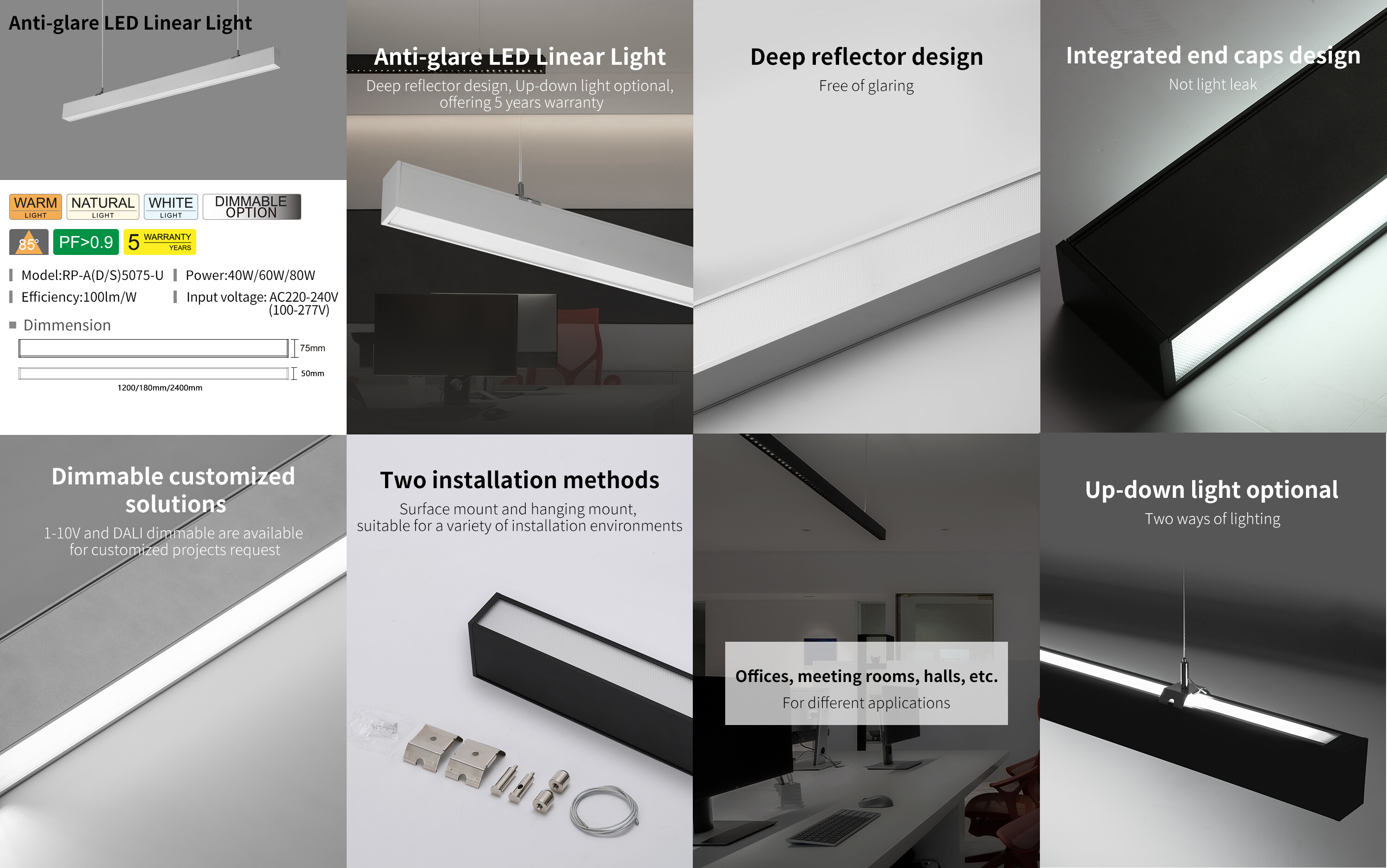

LED Linear light A series

Product Introduction

. Features linear lights adopts modernism design style, simple and stylish linear lights with stable quality and high luminous efficiency, exquisite & durable and good heat dissipation Slim appearance,no visible screws,infinite linkable.Frame to be of a high-quality finish, All components and the finished products up to CE compliant (EMC, LVD & ROHS) and built in accordance with the relevant sections of EN60598 Warranty. lighting to provide 5-year warranty

Product Downloads

Overview

MODEL TYPE	TC-RP-A(D/S)5075-U12	TC-RP-A(D/S)5075-U18	TC-RP-A(D/S)5075-U24
Size(mm)	L1210W50H75	L1810W50H75	L2410W50H75
Input(V)	AC200~240V(Option AC100-277V)
Frequency domain (Hz)	50/60 Hz
Input current	Max0.25A	Max0.38A	Max0.5A
Rated power(W)	40W	60W	80W
Power Factor (PF)	>0.9
Dimmable	Option :Dali/0-10V
THD	<15%
Lumens (Im)	3800I m	5700l m	7600lm
CCT(K)	3000-6500K
CRI	Ra≥ 80
SDCM	<6
Beam Angle	85°
UGR	UGR<19
LEDs	SMD2835
Life Span(Hrs)	≥35000H
Material	AL+PS+PC
Body color	White,Silver,Black
Protection class (IP)	P20(i ndoor)
Operating temperature	-20℃~ 45℃
Operating humidity	10%～ 90%R.H.
Stocking temperature &humidity	-40℃~ 80℃、5%～ 95%R.H.
Product certification	CE
Environmental directive	ROHS
