trailing edge phase-cut LED dimmer Smart Switch Lighting Accessory Light Led Controller Dimmer 300W

1、Product parameters：

   Voltage:200-240Vac/50Hz    Weight:75g

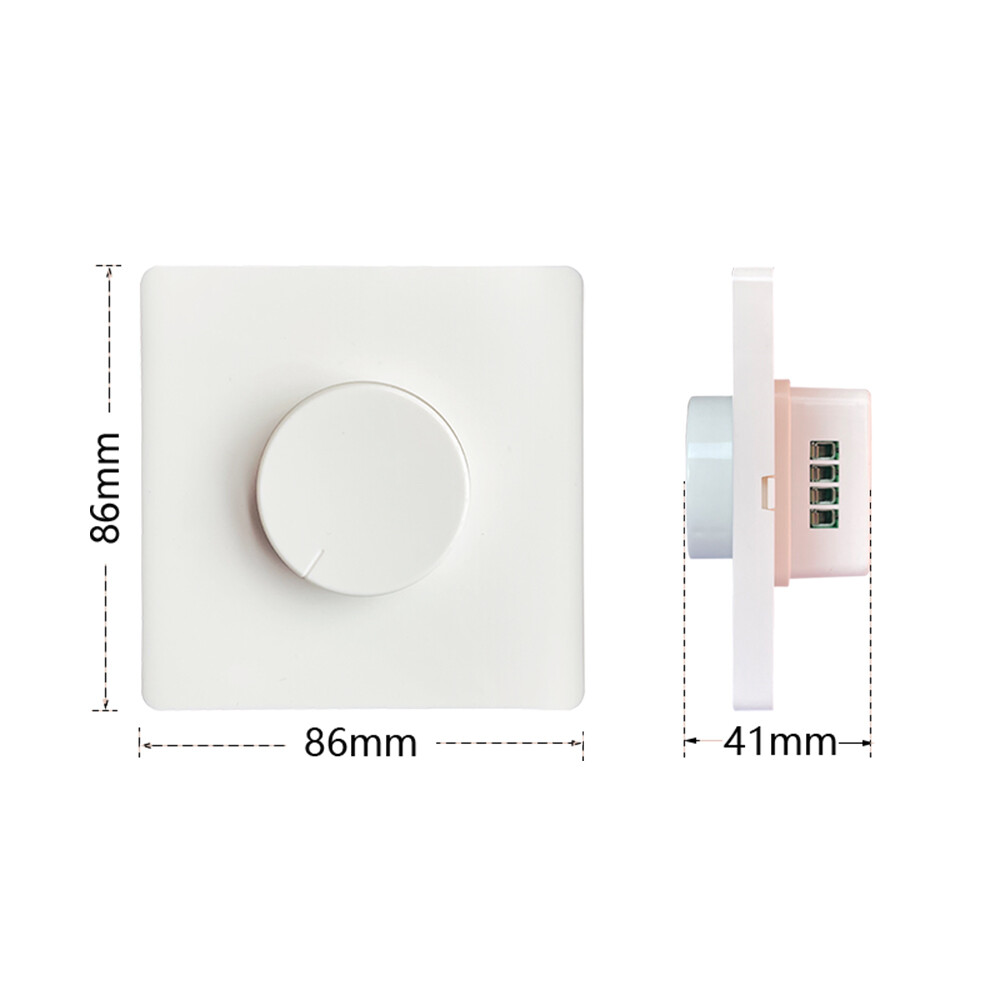

   Ta:0~-+40℃               Size:86×86×41mm

EN60669-2-1              Wire:0.75-2.5mm²

2、Power range at 25°C ambient temperature：

    (1)Dimmable led: PF is the power factor of the      lamp

PF≥0.9  3-300W Max.

PF≤0.6  3-150W Max.

   (2)HV Halogen Lamp/HV LED Strip/Incandescent Lamp:<300W

   (3)Dimmable electronic transformers:10-300W

3、Minimum brightness preset:

Turn the lights down to the lowest setting, adjust the potentiometer for the

minimum brightness setting clockwise, the lowest brightness to brighten, and the counterclockwise to dim.

4、Built-in over-temperature protection

Disconnect the load when the temperature reaches 120°C

5、Warning:

(1) L in and l out shall not be short circuited;

(2) Cannot be used for speed control of fans
