TC-XJ-LDS 2-in-1 Recessed Surface LED Panel Light with CCT and Power Selectable Switch With Sensor
Product Introduction

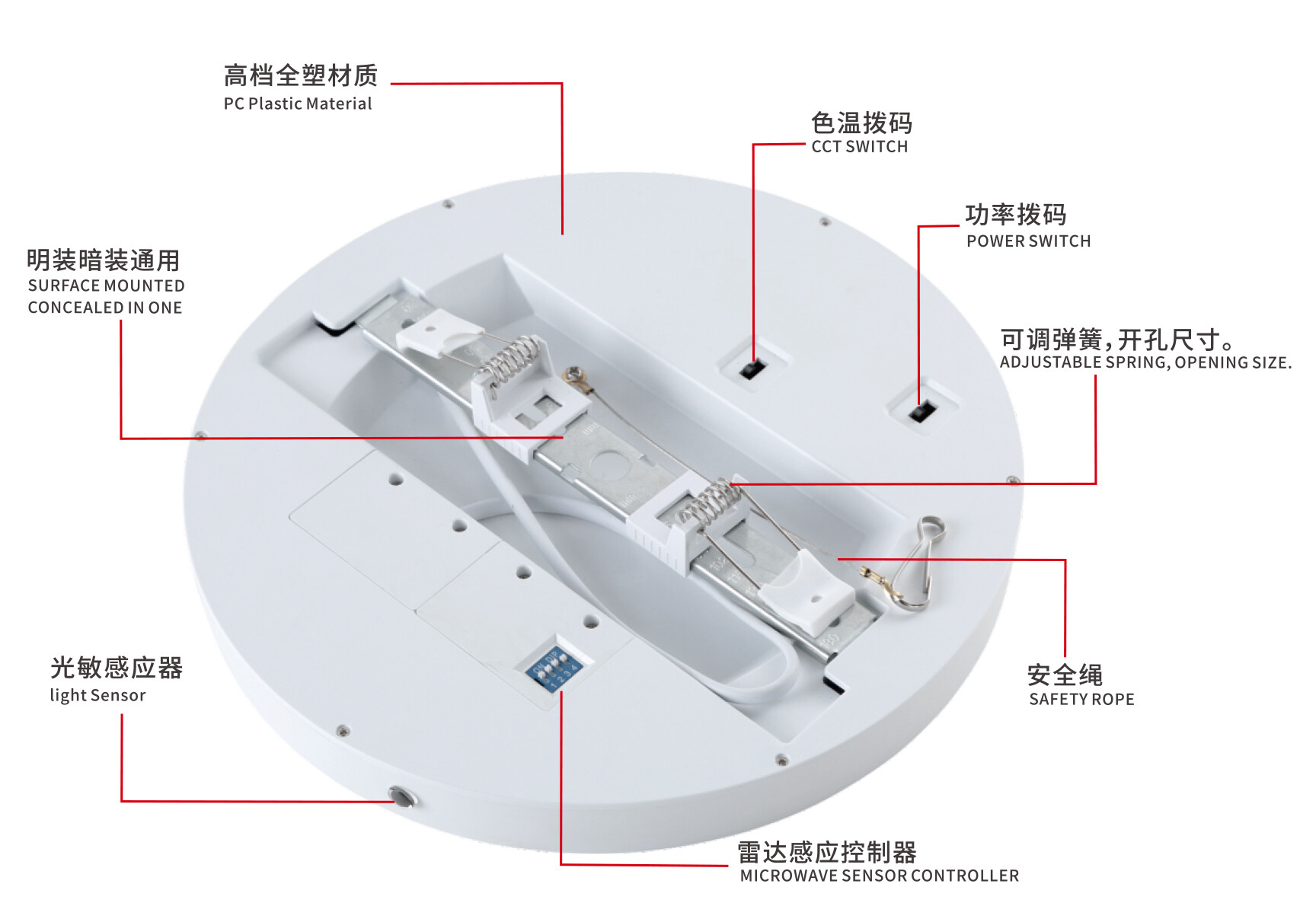

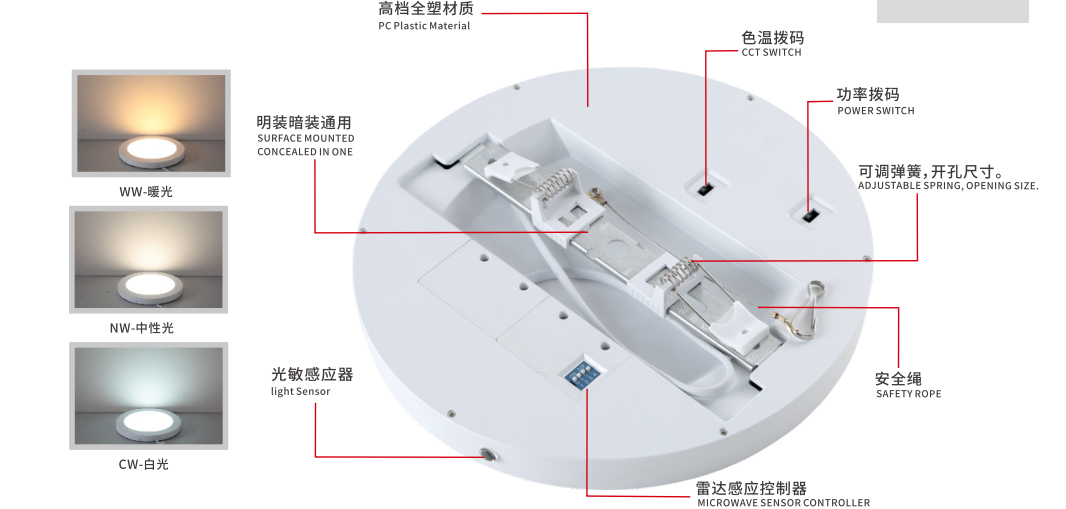

This versatile, high-grade PC plastic LED panel light seamlessly combines surface and concealed installation into one clever design. It features built-in DIP switches for custom CCT tuning (Warm White/Natural White/Cool White) and power wattage adjustment to fit various settings. Engineered with a slide-adjustable tension spring mechanism, it easily adapts to a wide range of existing ceiling hole sizes. Complete with integrated Microwave Radar and Photocell Light sensors, as well as a pre-instal
Product Downloads
Overview
ITEM NO. | POWER | LAMPSIZE(mm) | Hole Size | CM | PCS | 20GP | 40HQ |
TC-XJ-LDS-RD-18W | 18W | φ225mm | 55-200mm | 49.5*32*27.5 | 20 | 12396 | 30303 |
TC-XJ-LDS-RD-24W | 24W | φ300mm | 55-280mm | 63.5*32*34.5 | 20 | 7702 | 18829 |
TC-XJ-LDS-RD-30W | 30W | φ400mm | 55-280mm | 42.5*32*44.5 | 10 | 4461 | 10905 |
TC-XJ-LDS-SQ-18W | 18W | 225×225mm | 55-200mm | 49.5*32*27.5 | 20 | 12396 | 30303 |
TC-XJ-LDS-SQ-24W | 24W | 300x300mm | 55-280mm | 63.5*32*34.5 | 20 | 7702 | 18829 |
TC-XJ-LDS-SQ-30W | 30W | 400x400mm | 55-280mm | 42.5*32*44.5 | 10 | 4461 | 10905 |
